Wide temperature, high brightness, white LED backlight, lifespan over 50,000 hours, 180-degree flip display, 6/8-bit grayscale options, matte surface

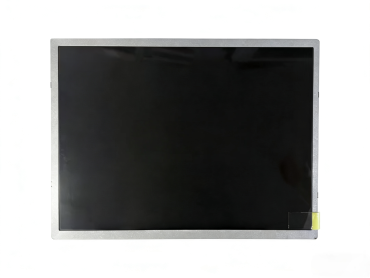

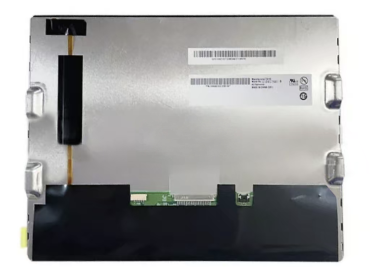

AUO G104STN01.6 is a scene-adaptive 10.4-inch LCD TFT panel module featuring "high brightness + lightweight + wide color gamut": with a high brightness of 700cd/m2, it can be clearly viewed in strong light outdoors; a 50% NTSC color gamut + 262K colors ensure more vivid text and images; a lightweight design of 294g + a thinness of 9.3mm does not increase the load of the device; paired with 50K-hour WLED backlight + LVDS stable interface, it can meet the requirements in both commercial display and industrial control scenarios.

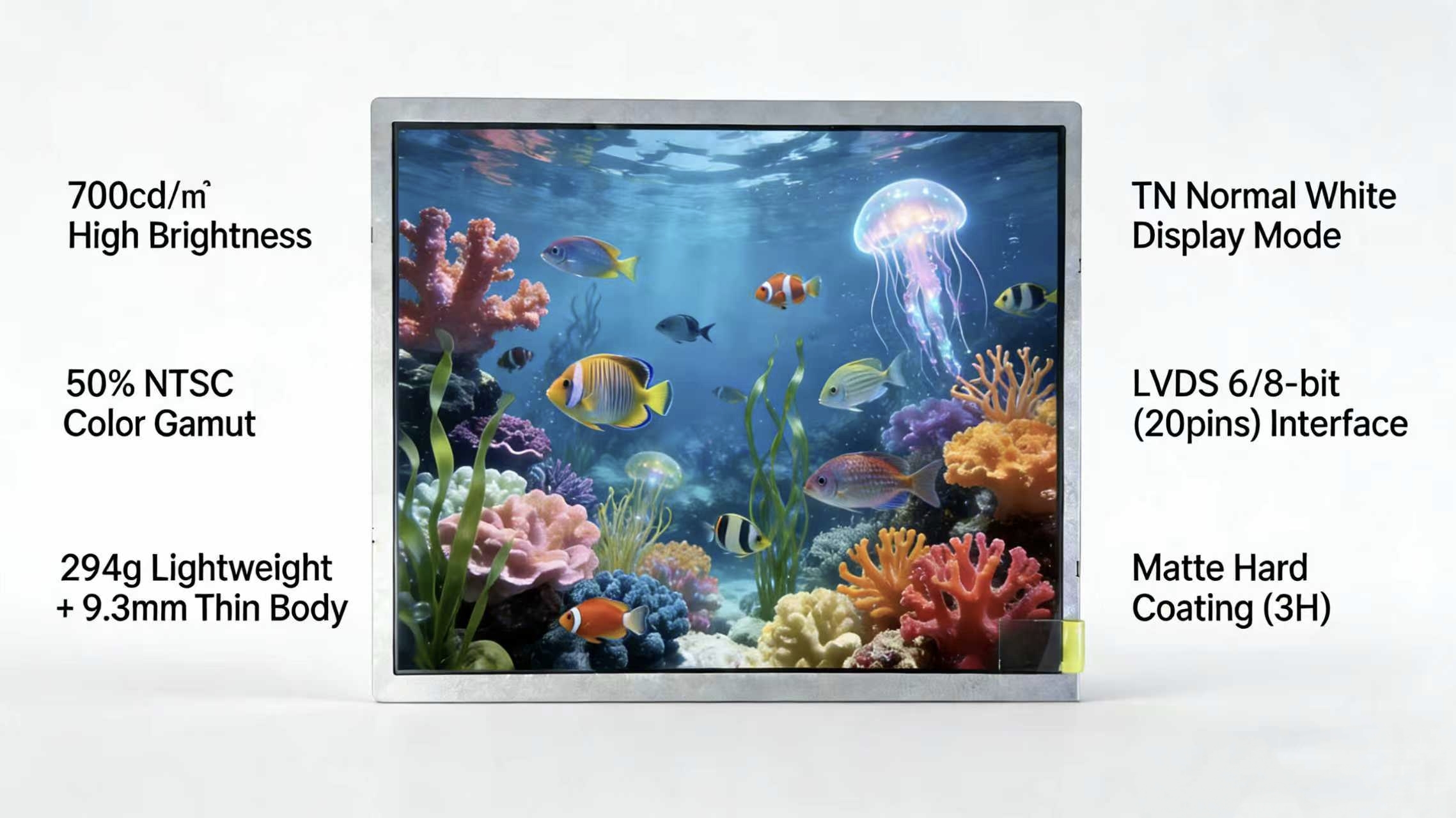

✨700cd/m2 high brightness:
Solving the problem of blurry display in outdoor environments
💡50% NTSC color gamut:
Covering a wider range of colors, making text and images / light videos display more vivid
🌟294g lightweight + 9.3mm thin body:
Reducing the overall weight and thickness of the terminal device, suitable for portable / slim design
⚡TN white display mode:
Fast static picture response, suitable for devices requiring high-frequency data refresh
💫LVDS 6/8-bit (20 pins) interface:
Stable transmission, compact pins, saves internal circuit space of the device
⭐Matte Hard coating (3H):
Anti-glare + scratch-resistant, balancing visual comfort and daily use durability
Smart robot
Smart home control
Outdoor advertising screen
Smart vending machine screen
Small warehouse control screen
Blood glucose detector display
Vehicle-mounted GPS display screen etc.
🟡The brightness of the AUO G104STN01.6 is 700 cd/m², which is a typical value. The actual brightness will slowly decrease with prolonged use. It is recommended to avoid operating at full brightness for extended periods. 🟡The viewing angle of the AUO G104STN01.6 is 80/80/70/70° (6 o'clock viewing angle). The bottom viewing angle is slightly narrower, so avoid positioning the device with the bottom facing the viewer for extended periods. 🟡The operating temperature range of the AUO G104STN01.6 is -30~80℃, but it should be stored in an environment with humidity below 80% to prevent internal condensation and circuit damage. 🟡The signal interface of the AUO G104STN01.6 is LVDS. A matching cable must be used for connection; using a standard cable may cause signal interference and display artifacts.
HXD is a professional supplier of LCD tft moudles, providing brands such as AUO/BOE/IVO/Sharp/ Innolux etc. And we have our own factory to provide relevant accessories including LCD control board, touch screen, light sensor, adapter plate, cable etc. and important components. For all products, we can provide the following services:
1. Flexible Customization Service Supports personalized adjustments of the core parameters of LCD tft panel, covering size (3"-32"), shape, brightness (up to 25oo nits), interfaces, resolution and other aspects, to meet the differentiated requirements of your terminal products.
2. "One-stop Shopping" Experience In addition to the LCD tft display, we also supply a complete set of related accessories such as LCD driver boards, LCD touch screens, light sensors, and adapter cables.
3. Product Quality Assurance Before each batch of LCD tft screens is shipped, aging tests, lifespan tests, and environmental adaptability tests are completed.
4. Reliable After-sales Service Provide 1-year official warranty. that are not damaged by human factors during the warranty period can be replaced or repaired free of charge.
Welcome to contact us now!
FAQs
Q: How can I obtain some samples? A: We do not offer free samples. However, if you place an order for mass production, we can offer a discount.
Q: What is the minimum order quantity? A: This depends on the specific product. Please contact the sales representative to confirm the minimum order quantity.
Q: How do you control the quality? A: All the materials we purchase for the production of any order are of high quality and comply with the RoHS standards. Advanced testing instruments and equipment ensure that every product undergoes 100% inspection before shipment.
Q: Do your products come with a warranty? A: Yes, our products come with a 12-month warranty period.
Q: What is your payment method? A: Payment methods: Telegraphic Transfer, PayPal, Wechat, etc. Sample fee: To be paid in advance. Batch production: 50% deposit is required upfront, and the remaining 50% balance must be paid off before shipment.
Q: Do you offer customized solutions? A: Yes, if the standard product fails to meet the your requirements, we can offer a customized solution.
