G104VTN01.0

Wide temperature range, white LED backlight, with a lifespan exceeding 100,000 hours, 180-degree flip display, matte surface, Flat Type

Download PDF Send Message

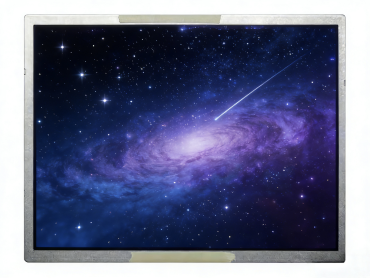

AUO G104VTN1.0

AUO G104VTN1.0 is an outstanding industrial-grade 10.4-inch LCD TFT display module with long lifespan, high compatibility and stable performance: a 47% NTSC color gamut and 262K colors ensure clear and accurate display of industrial data and equipment parameters. The core advantages directly address the long-term usage pain points: 100K hours of WLED backlight, which is 30% longer than that of similar LCD display panels; the Parallel RGB 40-pin interface is compatible with most traditional industrial control drivers; 3.3V low power consumption and wide temperature range (-30~80℃), it can be adapted for both industrial workshop PLC panels and display panels of medical equipment.

Basic Parameter

Brand	AUO	Model	G104VTN01.0
Size	10.4 inch	Type	a-Si TFT-LCD,LCD Module
Resolution	640(RGB)×480, VGA, 76PPI	Pixel Layout	RGB vertical stripes
Display Area	211.2(W)×158.4(H) mm	Appearance Size	227.3(W)×177.5(H)×9.8(D) mm
Brightness(cd/m²)	370 cd/m² (Typ.)	Contrast Ratio	700:1 (Typ.) (TM)
Visual Angle	80/80/60/80 (Typ.) (CR≥10)	Surface	Matte, Hard coating (3H)
Display Colors	262K , 47% NTSC	Working Pattern	TN, normally white display, transmissive
Weight	293g (Typ.)	Response Time	20/10 (Typ.) (Tr/Td)
Best Angle	6 o'clock	Backlight	WLED , 100K hours, with LED driver
Working Frequency	60Hz	Application	Industrial engineering
Interface	Parallel RGB (1 ch, 6-bit) , 40 pins , Terminals	Touch Screen	No
Driving Voltage	3.3V (Typ.)
Environment	Operating temperature: -30 ~80 °C ; Storage temperature: -30 ~80 °C

AUO G104VTN01.0 TFT LCD Panel Key Features

3.3V: Reducing device power consumption

Matte + Hard Coating (3H): Anti-glare, scratch-resistant

Parallel RGB 40-pin interface: Compatible with traditional devices

-30~80℃ wide temperature: Compatible with non-constant temperature scenarios etc.

100K hours WLED backlight: Extra-long lifespan, reducing the frequency of backlight replacement

47% NTSC color gamut + 262K colors: Meeting the display accuracy requirements for industry etc.

AUO G104VTN01.0 TFT LCD Panel Application

1. Industrial Manufacturing Industry

PLC HMI Touch Screen, Machine Tool Operation Panel, Warehouse Sorting Equipment Terminal

2. Commercial Retail Industry

Self-Service Ticket Kiosk, POS Terminal Main Display

3. Healthcare Industry

Portable ECG Monitor Display Panel, Compact Ultrasound Machine Display Panel

4. Smart Home Industry

Smart Central Control Screen (Wall-Mounted/Desktop Version), Video Doorbell Indoor Receiver Display

5. Logistics & Warehousing Industry

Logistics Handheld Terminal

HXD Services for AUO G104VTN01.0 LCD TFT Panel

1. Flexible Customization Service

We offer tailored adjustments for core LCD tft panel parameters—including size, shape, brightness, interface types, and resolution—to align perfectly with your terminal product’s unique design and functional needs.
2. "One-Stop Shopping" Experience
We don’t just supply LCD tft panels: we also provide a full suite of matching accessories (LCD driver boards, touchscreen modules, light sensors, and custom adapter cables) as an integrated display solution.
3. Reliable Shipping Transportation
We provide door-to-door delivery with flexible shipping options (air freight, sea freight, express) to match your timeline:
• Standard LCD products: Dispatched within 48 hours to 7 days.
• Customized orders: Shipped within 7 to 20 days.
We also track shipments in real time and share shipping updates with you until the order arrives safely.
4. After-Sales Service
All LCD tft panels come with a 12-month official warranty: If your LCD tft screen has non-human-caused issues (e.g., display glitches, backlight failure) during this period, we offer free replacement or professional repair—no hidden fees. Our after-sales team responds within 2 hours of your request and follows up until the problem is fully resolved.

FAQs

1. How can I get some samples?
A: We don’t provide complimentary samples, but we can apply a discount to your bulk order once you proceed with mass production.

2. What is the MOQ?
A: The minimum order quantity varies by product type. Please coordinate with our sales team to confirm the specific MOQ for your desired item.

3. Does your product have any warranty?
A: Absolutely—we provide a 12-month warranty coverage for all our products.

4. What's your payment method?
A: Accepted payment methods include T/T, PayPal, etc.
• For samples: Full payment is required upfront.
• For mass production: 50% deposit to confirm the order, with the remaining 50% settled before shipment.

5. Do you offer custom solution?
A: Yes—if our standard products don’t align with your needs, we’re able to develop tailored solutions to meet your specific requirements.

G104VTN01.0

AUO G104VTN1.0

Basic Parameter

AUO G104VTN01.0 TFT LCD Panel Key Features

AUO G104VTN01.0 TFT LCD Panel Application

HXD Services for AUO G104VTN01.0 LCD TFT Panel
