Wide operating temperature, white LED backlight, lifespan exceeding 50,000 hours, integrated LED driver, front-mounted connectors, 180-degree flip display, 6/8-bit grayscale selectable, matte surface.

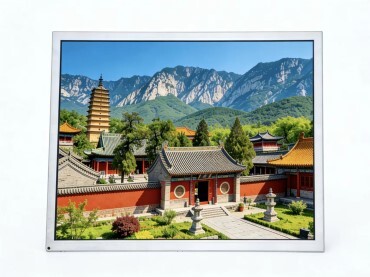

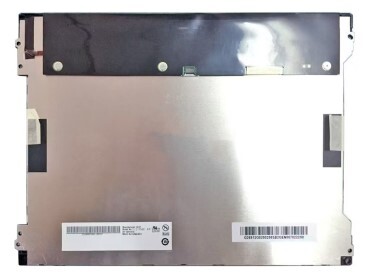

AUO G121XN01 V001 is a 12.1-inch industrial-grade TFT LCD display module specifically designed for devices that require stable performance in extreme temperature ranges and complex indoor lighting environments. The LCD display has a wide operating temperature range of -30°C to 85°C. It can function properly whether installed in unheated warehouses, refrigerated processing facilities, or exposed to intense sunlight in control cabinets. The LCD panel has a brightness of 500 nits and a 3H hard coating matte anti-glare surface, suitable for industrial use. Not only can operators obtain clear and readable display effects, but it can also reduce the strong reflection caused by workshop lighting, and protect the screen from accidental scratches during cleaning or daily use. The LED backlight of G121XN01 V001 can last up to 50,000 hours, which means reduced maintenance frequency, shortened downtime, and lower overall cost of ownership throughout the product's lifespan.
When you choose the AUO G121XN01 V001 display, you are choosing a LCD panel that can fulfill its duties: no matter what environment your device is in, G121XN01 V001 can always provide clear and accurate visual effects.
| Brand | AUO | Type | a-Si TFT-LCD, LCM |
| Model | G121XN01 V001 | Surface Finish | Matte, Hard Coating (3H) |
| Size (inch) | 12.1 | Pixel Layout | RGB Vertical Strip |
| Outline Dimension (WxHxD mm) | 279×209×9 | Optical Mode | TN,Normally white display, TM |
| Active Area (WxH mm) | 245.76×184.32 | Backlight Type | 9S2P WLED, 50K hours, with LED driver |
| Visual Area (WxH mm) | 250.8×189.4 | Interface | LVDS (1 ch, 6/8-bit), Connectors, 20 pins |
| Optimal Visual Angle | --- | Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Resolution | 1024 (RGB)×768, XGA,105PPI | Response Time | 25/10 (Typ.) (Tr/Td) ms |
| Brightness (cd/m²) | 500 | Display Colors | 262K/16.2M, 72%NTSC |
| Contrast Ratio | 700:1 (Typ.) (TM) | Operating Temperature (°C ) | -30~ 85 |
| Operating Voltage | 3.3V (Typ.) | Storage Temperature (°C ) | -30~85 |
| Operating Frequency | 60Hz | Weight | 170g (Typ.) |
| Application | Industrial Control | ||

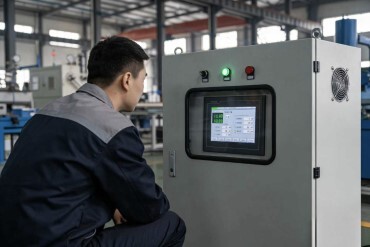

Perfect for PLC control terminals, CNC machine HMIs, and production line monitoring stations etc.
Delivers clear data in bright factory environments where operators need to monitor equipment status.
Ideal for indoor farm control systems, greenhouse monitoring terminals, and agricultural equipment maintenance stations etc.
Withstands temperature swings from cold storage to warm control rooms while delivering easy-to-read equipment diagnostics and environmental data.
Ready for patient monitoring systems, medical imaging workstations, and hospital equipment interfaces etc.
72% NTSC color gamut helps doctors distinguish subtle visual information more easily.
Suited for power plant control room displays, indoor substation monitoring terminals, and utility management workstations etc.
Reliable 24/7 operation ensures critical energy infrastructure stays visible, with the wide temperature range to handle seasonal facility variations.
