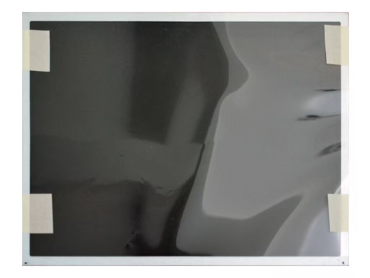

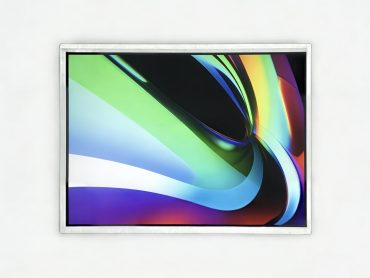

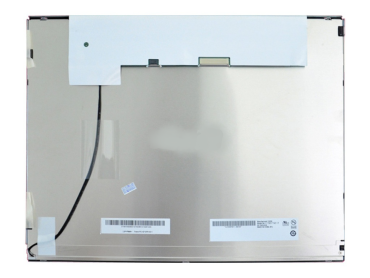

G150XTN01.0

Wide operating temperature range, easily replaceable backlight, WLED backlight with a lifespan of over 50,000 hours, includes LED driver, matte surface finish.

Download PDF Send Message

AUO G150XTN01.0 Product Description

AUO G150XTN01.0 15.0-inch LCD display module is a fast-response, ultra-wide temperature display solution optimized for single-person, front-view operation. G150XTN01.0 is a 15.0-inch a-Si TFT LCD display panel that achieves a precise balance between ultra-fast response, ultra-wide temperature tolerance, and cost control by employing classic TN panel technology.

For pragmatic customers who prioritize real-time interactivity, harsh environments, and project budgets, it addresses three core challenges:

1. Industry-leading 5.7/2.3 millisecond response time, completely eliminating ghosting and blurring when rapidly refreshing data, switching screens, or scrolling lists.

2. Support for extreme operating temperatures from -30℃ to 85℃. This allows devices integrating the LCD panel to be deployed outdoors without temperature control, inside mobile vehicles, or in cold chain environments without concerns about slow screen startup at low temperatures, image distortion at high temperatures, or premature component aging.

3. The relatively simple TN panel structure results in a more competitive price. The moderate brightness of 350 nits is optimized for indoor or backlit environments, avoiding the need to pay extra power consumption and cost for unnecessary high brightness performance.

Basic Parameters

Brand	AUO	Model Panel	G150XTN01.0
Diagonal Size	15.0 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(2)×768(2),XGA 85PPI	Pixel Format	RGBW Rectangle
Active Area	304.128(W)×228.096(H) mm	Display Area	310.18(W)×234.40(H)mm
Outline Dimension	326.5×253.5 ×13.1 (H×V×D)	Surface Treatment	Matte, Hard coating (3H)
Brightness	350 cd/m² (Typ.)	Contrast Ratio	700:1(Typ.)(TM)
Viewing Angle	80/80/60/80 (Typ.)(CR≥10)	Response Time	5.7/2.3 (Typ.)(Tr/Td) ms
Optimal Visual Angle	--	Optical Mode	TN, Normally White, Transmissive
Display Colors	16.2M, 60% NTSC	Backlight	WLED,50K hours, With LED Driver
Weight	1.00Kgs(Max.)	Application	Industrial Control
Refresh Rate	60Hz	Touch Function	No
Signal Type	LVDS(1 ch,8-bit),20 pins, Connector
Voltage Supply	3.3V (Typ.)
Environment Temperature	Storage Temperature: -30~85℃ ; Operating Temperature: -30~85℃

AUO G150XTN01.0 Matching LCD Controller Board

♦ Model HXD-H58, HDMI+DC12V input, LVDS output, operating temperature-20 to 70, support maximum resolution of 1920*1080

♦ Model YT-VDH58 V1.1 HDMI +DC12V input, LVDS output, operating temperature-40 to 70, supports maximum resolution of 1920*1200

♦ Model HXD-VDH 58L V1.1 HDMI +DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200

♦ Model HXD-V1680 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200

♦ Model HXD-HP58UWV V1.1 HDMI+DC12V input, LVDS output, support audio amplifier: 2 x 10W, support maximum resolution 1920*1200

♦ Model HXD-VD68 V1.1 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200

◊ The supporting LCD driver board adopts stable industrial scheme. All devices meet industrial standards. LCD driver board has been strictly tested and demonstrated. The recommended LCD driver board is matched according to the parameters of the LCD panels.

◊ It expands the application of LCD panels. Detailed parameters of LCD driver board are described in detail on other pages.

Why Partner with HXD for LCD TFT Displays?

Zhengzhou Hengxinda Technology Co., Ltd is a profeesional LCD TFT display supplier from China, mainly providing brands sunch as AUO/BOE/IVO/Sharp/Innolux etc. We can offer the following service:

1. Customized Adaptation Services: We support customized adaptation of LCD screens in various sizes and models. From measurement to production, we provide one-on-one follow-up to ensure the glass cover perfectly fits the screen without affecting the original structure of the equipment.

2. Rigorous Quality Inspection: Every glass cover undergoes multiple tests for impact resistance, light transmittance, temperature tolerance, and more, meeting industrial-grade standards to ensure flawless products delivered to our customers.

3. Comprehensive After-Sales Support: Products come with a 12-month warranty. In case of non-human-caused issues such as glass breakage or detachment, we provide free replacement services.

4. "One-Stop Shopping" Experience: In addition to LCD TFT displays, we also supply a full range of related accessories, including LCD controller boards, LCD touch screens, light sensors, and compatible cables. You can also opt for touch screen bonding services or glass bonding services, enabling us to deliver an integrated display solution—from the screen to its peripheral components.

5. Reliable Logistics Shipping: We support various shipping methods, including air, sea, and land freight, and can flexibly adjust to your delivery timeline requirements. Standard LCD TFT panels products are shipped within 48 hours to 7 days, while customized products are delivered within 7 to 20 days.

FAQs:

1. Do you support free samples?

A: No, samples must be purchased at the retail price. When purchasing in bulk, we will apply the discount for you. The sample delivery cycle is 1-2 working days.

2. How long is the cycle for customized complementary services (such as touch screen + bonding)?

A: If you choose the standard configuration of touch screen + bonding service, the order cycle is 7-10 working days; if you need a touch screen with customized special touch parameters, the cycle is 10-21 working days.

3. Is parameter customization supported?

A: We offer custom LCD displays. Parameters such as interface type, brightness, and surface treatment can be customized. Customization requirements must meet a minimum order quantity of 500 units. Specific details can be discussed with us.

4. What is the after-sales guarantee for this product?

A: Provide 12 months full machine warranty (including TFT LCD panels and supporting driver board). Non-human damage (such as panel failure, backlight not working) can enjoy free repair / replacement services; beyond the warranty period, provide lifetime cost-price maintenance services.

5. Is there a price discount for bulk purchases?

A: Bulk purchases (≥100 units) can enjoy a stepped price discount. The larger the purchase volume, the higher the discount. Specific quotations can be provided by contacting us.
