WLED backlight, lifespan greater than 50,000 hours, includes LED driver, 6/8-bit grayscale selectable, matte surface, eDP 1.2.

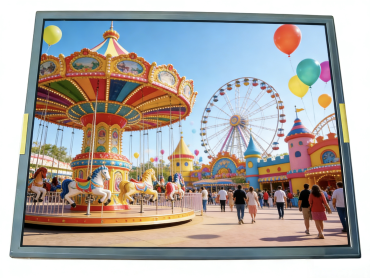

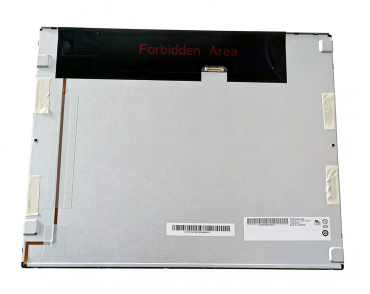

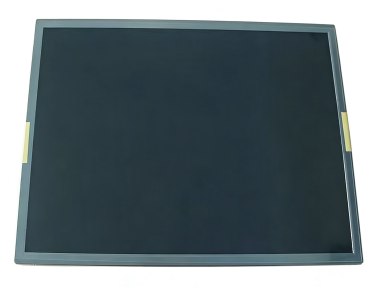

AUO G150XTN03.8 is a new generation ultra-thin eDP interface Industrial TFT LCD display solution designed specifically for compact devices. This 15.0-inch a-Si TFT industrial LCD module, featuring an advanced eDP interface and an ultra-thin design, is not only a display component but also a key enabling component for device manufacturers striving for miniaturization and lightweight design.
It precisely addresses the design challenges of modern embedded devices through three core upgrades:
1. The overall thickness of the LCD panel is only 6.8mm. The new generation eDP interface uses a simpler wiring scheme, effectively reducing internal cable complexity and space requirements.
2. The eDP interface offers higher transmission bandwidth and stronger electromagnetic interference resistance, ensuring stable and noise-free display signals in complex internal device environments. Adopting the eDP 1.2 standard also provides a convenient path for connecting to new generation high-performance processors, extending product lifespan.
3. A fast response time of 5.7/3.2ms ensures no ghosting or motion blur when operating the interface, scrolling data, or playing dynamic content, providing users with a clear, smooth, and comfortable visual interaction experience.
♦ Model HXD-H58, HDMI+DC12V input, LVDS output, operating temperature-20 to 70, support maximum resolution of 1920*1080
♦ Model YT-VDH58 V1.1 HDMI +DC12V input, LVDS output, operating temperature-40 to 70, supports maximum resolution of 1920*1200
♦ Model HXD-VDH 58L V1.1 HDMI +DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200
♦ Model HXD-V1680 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200
♦ Model HXD-HP58UWV V1.1 HDMI+DC12V input, LVDS output, support audio amplifier: 2 x 10W, support maximum resolution 1920*1200
♦ Model HXD-VD68 V1.1 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200
◊ The supporting LCD driver board adopts stable industrial scheme. All devices meet industrial standards. LCD driver board has been strictly tested and demonstrated. The recommended LCD driver board is matched according to the parameters of the LCD panels.
◊ It expands the application of LCD panels. Detailed parameters of LCD driver board are described in detail on other pages.
Handheld industrial inspection instruments, portable medical diagnostic equipment, high-end test and measurement instruments, and embedded industrial control computer display units. The ultra-thin and lightweight design significantly reduces equipment weight and improves portability; the eDP interface seamlessly connects with high-performance processors, meeting the demands of complex graphics processing; and the fast response time facilitates the display of rapidly updating measurement data.
Rear-seat entertainment screens in taxis/ride-hailing vehicles, central control information terminals for commercial fleets, intelligent terminals in logistics vehicles, control panels for special vehicles (such as RVs), etc. Ultra-thin design for easy integration into confined vehicle interior spaces; eDP interface simplifies wiring and improves system connectivity reliability in vibration environments; 0-60℃ wide temperature range adapts to in-vehicle environments.
High-end smart central control screens, video doorbell indoor units, embedded home appliance control panels (such as smart refrigerators and ovens), etc. The slim design blends seamlessly with modern home; the stability of the eDP interface ensures long-term reliability; and the fast response speed enhances the smoothness and sophistication of human-computer interaction.
Zhengzhou Hengxinda Technology Co., Ltd is a professional LCD TFT display supplier from China, mainly providing brands sunch as AUO/BOE/IVO/Sharp/Innolux etc. We can offer the following service:
1. Customized Adaptation Services: We support customized adaptation of LCD screens in various sizes and models. From measurement to production, we provide one-on-one follow-up to meet your needs.
2. Rigorous Quality Inspection: Every LCD panel undergoes multiple tests for impact resistance, light transmittance, temperature tolerance, and more, meeting industrial-grade standards to ensure flawless products delivered to you.
3. Comprehensive After-Sales Support: Products come with a 12-month warranty. In case of non-human-caused issues such as glass breakage or detachment, we provide free replacement services.
4. "One-Stop Shopping" Experience: In addition to LCD TFT displays, we also supply a full range of related accessories, including LCD controller boards, LCD touch screens, light sensors, and compatible cables. You can also opt for touch screen bonding services or glass bonding services, enabling us to deliver an integrated display solution—from the screen to its peripheral components.
5. Reliable Logistics Shipping: We support various shipping methods, including air, sea, and land freight, and can flexibly adjust to your delivery timeline requirements. Standard LCD TFT panels products are shipped within 48 hours to 7 days, while customized products are delivered within 7 to 20 days.
FAQs:
1. Do you support free samples?
A: No, samples must be purchased at the retail price. When purchasing in bulk, the sample cost can be fully deducted from the corresponding payment. The sample delivery cycle is 1-2 working days.
2. How long is the cycle for customized complementary services (such as touch screen + bonding)?
A: If you choose the standard configuration of touch screen + bonding service, the order cycle is 7-10 working days; if you need a touch screen with customized special touch parameters, the cycle is 10-21 working days.
3. Is parameter customization supported?
A: Parameters such as interface type, brightness, and surface treatment can be customized. Customization requirements must meet a minimum order quantity of 500 units. Specific details can be discussed with us.
4. What is the after-sales guarantee for this product?
A: Provide 12 months full machine warranty (including screen and supporting driver board). Non-human damage (such as panel failure, backlight not working) can enjoy free repair / replacement services; beyond the warranty period, provide lifetime cost-price maintenance services.
5. Is there a price discount for bulk purchases?
A: Bulk purchases (≥100 units) can enjoy a stepped price discount. The larger the purchase volume, the higher the discount. Specific quotations can be provided by contacting us.
