Portrait mode, white LED backlighting

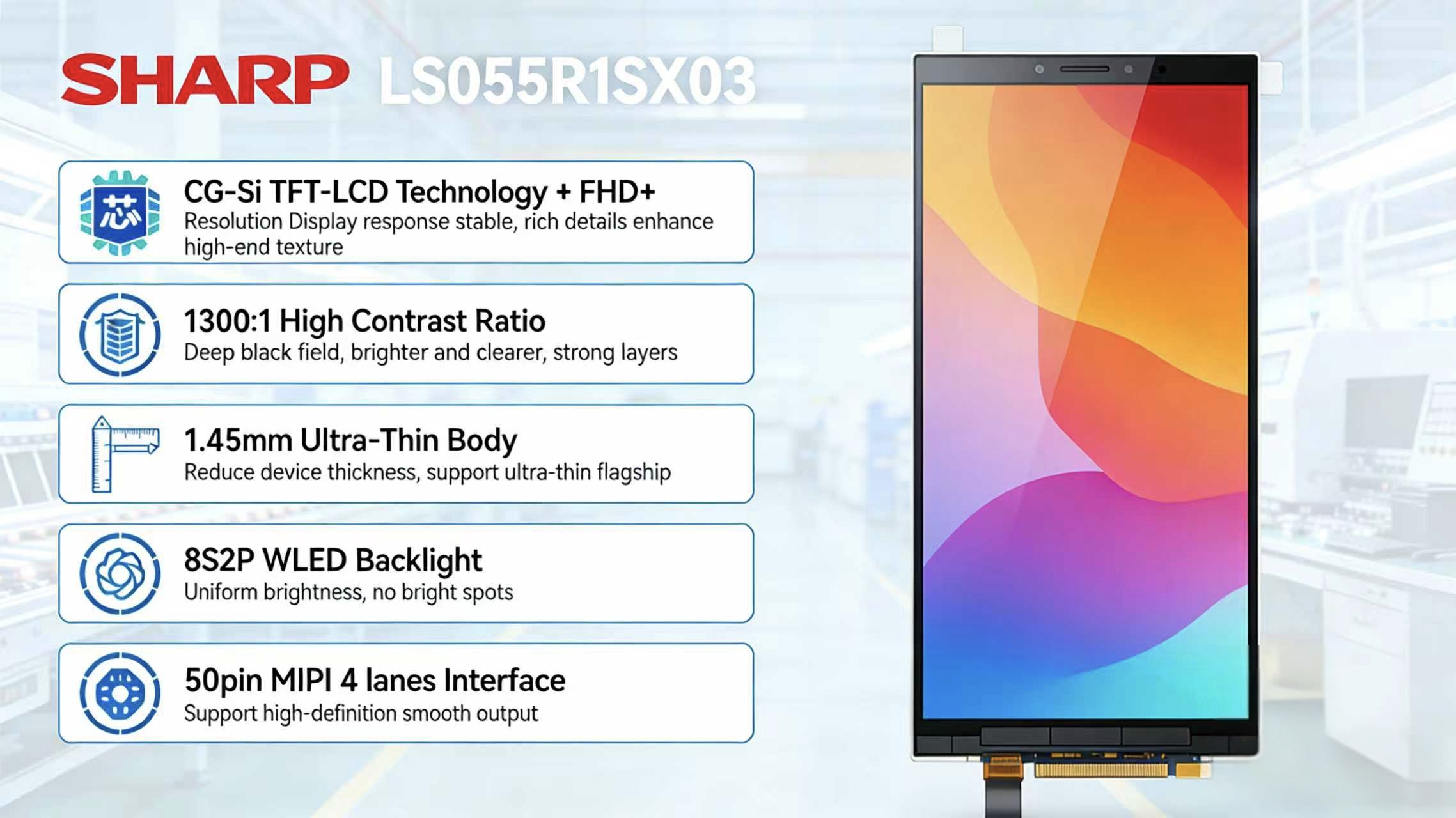

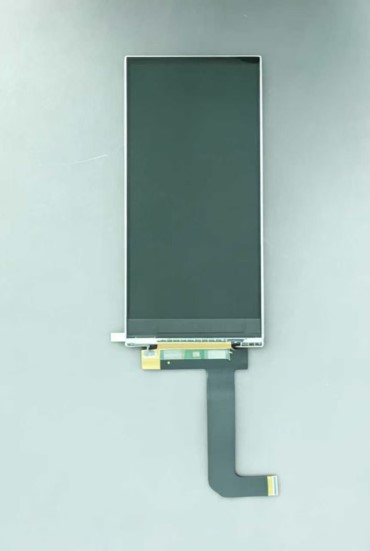

Sharp LS055R1SX03 is a CG-silicon 5.5-inch TFT-LCD panel, achieving a refined display effect with a 1440×2560 FHD resolution (403 PPI); with an ultra-thin body of only 1.45mm and a lightweight design of 25.0g, it still features a high contrast ratio of 1300:1 and a brightness of 450cd/m², which not only ensures the portability and lightness of the terminal device, but also breaks through the performance bottleneck of lcd tft screens of the same size in terms of picture quality. And its wide temperature adaptability of -20~60℃ enables it to cope with mild complex environments even outside the consumer-grade scenarios.
Brand
Sharp
Type
CG-Silicon TFT-LCD
Model
LS055R1SX03
Surface Finish
---
Size (inch)
5.5
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
70.94(W)×128.49(H)×1.45(D)
Optical Mode
New Mode2
Active Area (WxH mm)
68.04(W)x120.96(H)
Backlight Type
8S2P WLED
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Interface
MIPI (4 data lanes), 50 pins
Resolution
1440(RGB)×2560,FHD,403PPI
Response Time
35 (Max.) (Tr+Td) ms
Brightness (cd/m²)
450
Display Colors
16.7M, 70%NTSC
Contrast Ratio
1300:1
Operating Temperature (°C )
-20~ 60
Operating Voltage
1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)
Storage Temperature (°C )
-30~70
Operating Frequency
60Hz
Weight
25.0g
Application
Smart Phone
Sharp LS055R1SX03: With FHD+ resolution, high contrast and ultra-thin design, it can serve as the main display for mid-to-high-end models, meeting users' dual demands for fine picture quality and the lightness and thinness of the device.
1. The 403PPI of Sharp LS055R1SX03. Compared with lcd tft panels of the same size but with higher PPI, what are the advantages? A: While ensuring clear display, Sharp LS055R1SX03 also takes into account the balance of power consumption and cost, and the display stability brought by CG-silicon technology is incomparable to ordinary screens with high PPI.
2. With a thickness of 1.45mm, will it affect the shock resistance of the lcd tft screen? A: The LCD tft screen body uses reinforced glass substrate and has passed a 1.5-meter drop test (in combination with terminal protection structure) before leaving the factory. Its shock resistance is the same as that of regular thickness screen bodies.
3. Can you provide an integrated solution for the screen and touch control module? A: We offer an " touch screen + LCD tft panel" integrated solution. You can choose bonding technology that suits for your application.
4. Will the screen's color deviate under wide temperature operation conditions? A: The screen body is equipped with a temperature compensation chip. The color deviation within the range of -20 to 60℃ is controlled within ΔE<3, maintaining display consistency.
5. What is the minimum order quantity for batch orders? A: The minimum order quantity for regular products is 2 pieces. If the customer has customization requirements, the minimum order quantity is 30 pieces (cost needs to be calculated separately).
