White LED backlight, flip display up/down/left/right, FPC length 46.

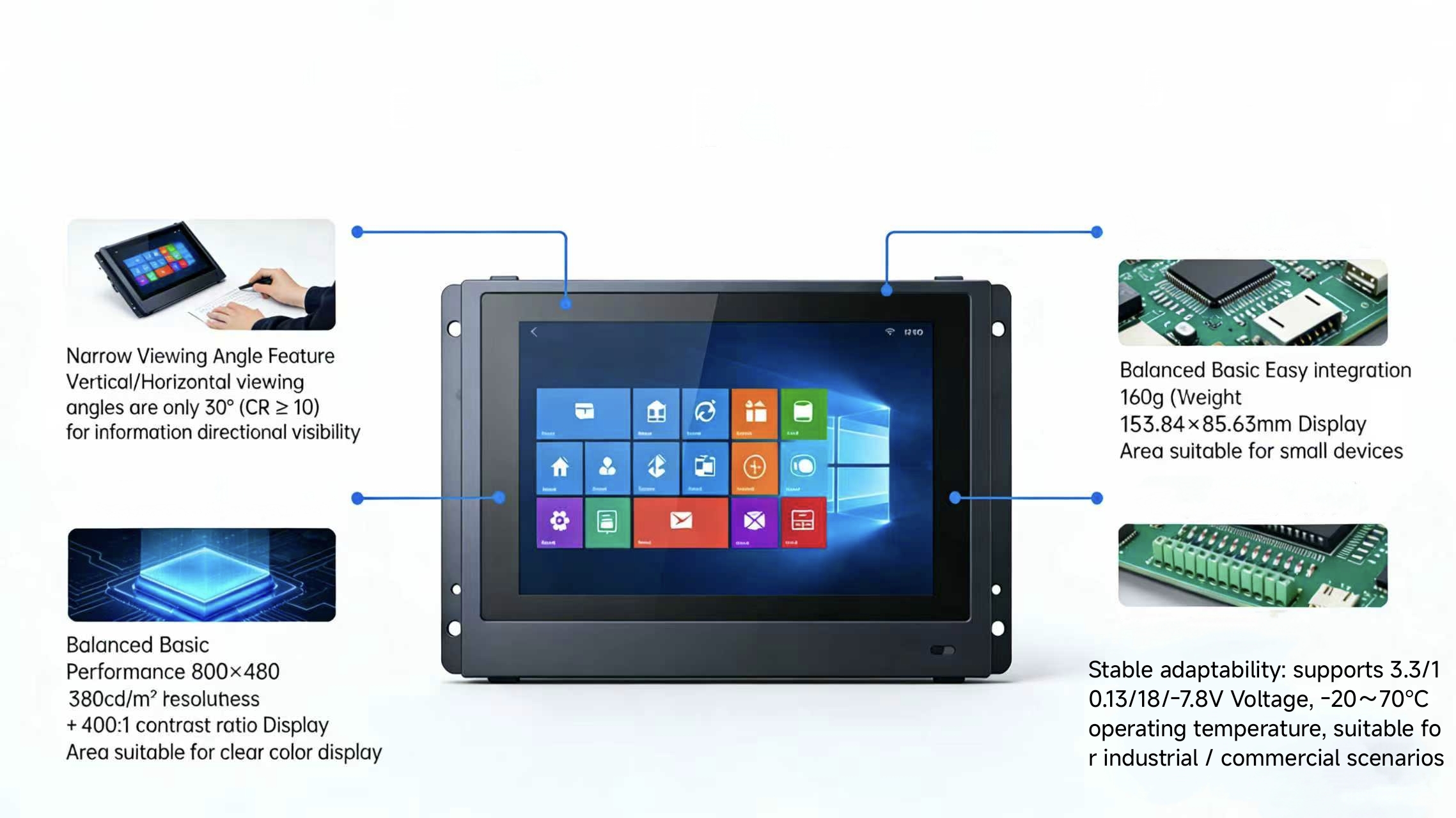

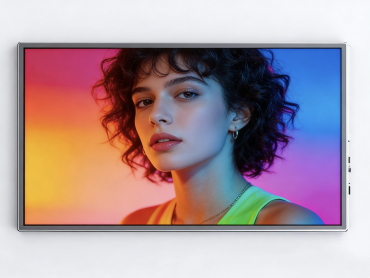

BOE Q1T070WVM-N10 is a 7.0-inch a-Si TFT-LCD display module with a WLED backlight solution. Its core feature is a 30° ultra-narrow viewing angle, which only displays clearly within a 60° range directly in front and naturally blurs the content from the side. With an 800×480 WVGA resolution, 380cd/m2 brightness, and 16.7M color display, it not only meets the picture quality requirements of conventional display scenarios but also achieves targeted information display through the narrow viewing angle feature, making it particularly suitable for scenarios with privacy and information confidentiality requirements.
Brand
BOE
Type
a-Si TFT-LCD
Model
QT070WVM-N10
Surface Finish
---
Size (inch)
7.0
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
165(W)×100(H)×5.75(D)
Optical Mode
TN
Active Area (WxH mm)
153.84(W)x85.632(H)
Backlight Type
WLED [3S7P]
Viewing Angle
30/30/20/30 (Typ.)(CR≥10)
Interface
50 pins, Parallel RGB (1 ch, 6/8-bit) , FPC
Resolution
800(RGB)×480,WVGA,134PPI
Response Time
30 (Typ.) (Tr+Td) ms
Brightness (cd/m²)
380
Display Colors
16.7M, 45%NTSC
Contrast Ratio
400:1
Operating Temperature (°C )
-20~ 70
Operating Voltage
3.3/10.13/18/-7.8V (Typ.)(VDD/AVDD/VGH/VGL)
Storage Temperature (°C )
-30~80
Operating Frequency
60Hz
Weight
160g
Application
Industrial Control/ Household appliances
Narrow-viewing-angle LCDs (primarily TN or some low-cost VA panels), while limited in viewing angles, offer low cost, simple structure, and mature technology. They are still widely and reasonably used in specific industries and scenarios where wide viewing angles are not required. The following are the main application industries and typical end-products for narrow-viewing-angle LCDs:
✅ 1. Industrial Control & Automation
Industrial handheld terminals, PLC control panels, HMIs, Instrument displays (voltage meters, temperature controllers), Equipment status monitoring screens etc.
✅ 2. Automotive & Transportation
Car center console displays, Truck/bus monitoring displays etc.
✅ 3. Medical Devices (Mid-to-Low End or Portable)
Portable patient monitors, Infusion pump displays, blood glucose meter screens etc.
✅ 4. Retail & Food Service Terminals
Self-service kiosks, ATM screens, Self-checkout machine payment code displays etc.
✅ 5. Special Equipment & Security Terminals
Door intercom indoor units, Surveillance system sub-displays etc.
Aspect
Advantages ✅
Disadvantages ❌
Cost
Low manufacturing cost, highly price competitive
–
Power Consumption
Relatively low power consumption, suitable for battery-powered devices
Fast response time (typically 5–30 ms), suitable for static or simple dynamic content
Still inferior to gaming-grade TN or high-end IPS panels
Operating Temperature
Good wide-temperature performance (often supports -20 to 70°C), suitable for industrial and automotive environments
Structural Reliability
Simple structure, mature technology, good vibration resistance
Very narrow viewing angle (typically only about 30° when CR≥10), color distortion and contrast loss when viewed from an angle
Color Performance
Narrow color gamut (often around 45% NTSC), poor color reproduction
Viewing Experience
Not suitable for multi-person viewing or wide-angle applications (e.g., conference displays, digital signage)
Image Uniformity
Poor brightness and color uniformity in larger sizes
Touch Compatibility
Parallax issues may occur when combined with touch panels (requires high-quality lamination)
Hengxinda, as a specialized supplier of LCD tft panels, can provide the following services for all products:
1. Sample and testing support: Provide 1 or 2 samples; can assist in conducting portable scenario simulation tests such as shock resistance, high/low temperature tests;
2. Flexible supply plan: Supports small batch (as low as 3 pieces) samples + large-scale stable supply. Regular inventory ensures delivery within 72 hours, and urgent orders support 24-hour rush delivery;
3. After-sales technical support: Provide 1-year warranty for non-human damage, respond within 24 hours and provide solutions;
4. Component integration: Can assist in integrating dedicated driver boards, touch screens, battery modules and other accessories for portable devices to achieve "LCD tft screen + components" one-stop shopping;
5. Customized services: Can customize size, shape, interface, brightness, resolution, etc. according to your application scenarios.
FAQs:
1. Do you offer free samples?
A: We do not offer free samples. Samples must be purchased at the retail price. When purchasing in bulk, the corresponding payment can be deducted.
2. What are the shipping methods?
A: The default shipping method is Fedex/DHL, etc. For bulk orders, land transportation / sea transportation can be supported. The specific delivery time will be based on the information provided by the logistics company.
3. How long is the regular shipping cycle?
A: For regular orders, the product will be shipped within 48 hours after payment. For custom orders, the cycle needs to be confirmed according to the requirements, and it is generally 7-21 working days.
4. Do you support product customization?
A: Customization is supported for parameters such as interface type, backlight brightness, resolution, size, and shape.
5. What payment methods are supported?
A: T/T, Alipay, and WeChat payment are supported. For bulk orders, the settlement method can be 50% deposit + 50% balance.
