TCG085WVLCB-G00

White LED backlight, lifespan greater than 50,000 hours, 180° flip display, mirror surface.

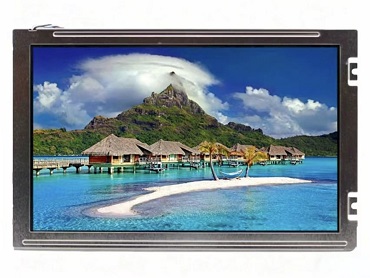

Industrial Control Device TFT LCD Display Kyocera TCG085WVLCB-G00

Kyocera TCG085WVLCB-G00 is an 8.5-inch LCD display module adopting a-Si TFT-LCD technology. It is equipped with WLED backlight, but without LED backlight driver and touch function. Its operating temperature is -20°C to 70°C, and storage temperature ranges from -30°C to 80°C. TCG085WVLCB-G00 adopts a bottom side-lit 6S2P WLED light source with a lifespan of 50K hours. Kyocera TCG085WVLCB-G00 uses a Parallel RGB (1 ch, 6-bit) signal interface with a total of 40 pins, connected via connectors. The typical panel driving voltage is 3.3V (Typ.). TCG085WVLCB-G00 is widely used in industrial equipment, medical equipment and vehicle-mounted devices, including industrial HMI display panel, CNC machine display panel, small self-service query terminal, medical auxiliary equipment display panel, and vehicle-mounted display screen. The basic parameters of TCG085WVLCB-G00 are in the following table.

Panel Brand	Kyocera	Panel Model	TCG085WVLCB-G00
Panel Size	8.5 inches	Panel Type	a-Si TFT-LCD, liquid crystal module
Resolution	800(RGB)x480,WVGA,109PPI	Pixel Layout	RGB vertical stripe
Active Area	184.8(W)x110.88(H)mm	Outline Dimension	210(W)x134(H)x9(D)mm
Viewable Area	187.4(W)x113.5(H)mm	Surface Treatment	Mirror (Haze 0%)
Brightness	400 cd/m²(Typ.)	Contrast Ratio	500:1(Typ.)(Transmission)
Viewing Direction	-	Response Time	15/35(Typ.)(Tr/Td) ms
Viewing Angle	60/60/60/45(Typ.)(CR≥5)	Optical Mode	TN, Normally White Display, Transmission Type
Display Colors	262K,49% NTSC	Backlight Type	WLED [6S2P], 50K hours, No Driver
Weight	305g(Typ.)	Application	Industrial
Operating Rate	60Hz	Touch Function	No
Interface	40 pins Parallel RGB(1 ch,6-bit), connector
Operating Voltage	3.3V(Typ.)
Operating Environment	Operating temperature: -20~70℃; Storage temperature: -30~80℃

About Zhengzhou Hengxinda Technology Co., Ltd

As a leading China supplier of industrial TFT LCD display module solutions, Zhengzhou Hengxinda Technology Co,. Ltd specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.

• Reliable Supplier: We provide original Grade A LCD screens from top brands such as AUO, Sharp, Tianma, BOE and Innolux, with stable supply and guaranteed quality.

• Rich Industry Experience: With over 10 years of in-depth involvement in sectors including industrial control, medical equipment, automotive electronics, rail transit, and military applications, we deeply understand the unique requirements of each industry.

• Professional Technical Support：Our engineering team provides full pre-sales consultation (product selection/cost optimization) and after-sales service (1-year warranty, fast response).

FAQs:

Q1: Do you provide accessories that match Kyocera TCG085WVLCB-G00?

A: Of course. We provide touch screens and related cables that match the Kyocera TCG085WVLCB-G00. If you want to purchase an 8.5-inch industrial touch display all-in-one machine, we can assemble and provide it for you.

Q2: What is the price of Kyocera TCG085WVLCB-G00?

A: We source directly from the original factory, offering the same quality at a better price. The same price also comes with better service. However, the price of the LCD panel will fluctuate depending on its production status. If you would like a free quote, you can also contact us for a detailed price list.

Q3: Can you help identify the cause if any problem occurs with the screen during use?

A: We can remotely assist customers in troubleshooting based on the abnormal symptoms of the LCD screen combined with our professional experience. In most cases, however, customers need to send the screen back to us. Our engineers will inspect the unit to locate the fault point, analyze possible causes, and provide corresponding solutions for customers.

Q4: What is the MOQ for the screens?

A: We do not have a minimum order quantity requirement; however, we generally recommend that customers place orders in quantities that are multiples of a full container load after the samples have been approved. A container typically holds between 20 and 80 pieces.

Q5: What is your warranty period?

A: We offer a one‑year warranty. Within the warranty period, for non‑human damage quality issues, we provide free return, replacement or repair service to fully guarantee your experience.
