Wide temperature range, 1500 nits ultra-high brightness, white LED backlight with lifespan over 50,000 hours, includes LED driver, 180° flip display, matte surface.

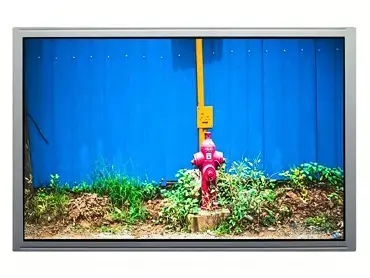

Kyocera TCG121WXLRFVNN-AN40 is a 12.1-inch high brightness LCD panel module that applies a-Si TFT-LCD technology. It is equipped with WLED backlight and integrated LED backlight driver, but without touch function. The operating temperature ranges from -30°C to 80°C, and the storage temperature ranges from -30°C to 80°C. In terms of backlight, TCG121WXLRFVNN-AN40 adopts a side WLED backlight with a service life of 50K hours. TCG121WXLRFVNN-AN40 features an LVDS signal interface with a total of 20 pins, connected via connectors. The typical display driving voltage is 3.3V (Typ.).
1. High Brightness up to 1500 nits
Equipped with ultra-high brightness of 1500 nits, Kyocera TCG121WXLRFVNN-AN40 remains clear and vivid even in bright light and direct sunlight. It effectively avoids screen whitening and blurred display, perfectly adapts to outdoor equipment, engineering machinery and other high-light usage scenarios, and ensures stable and readable screen content in harsh bright environments.
2. Wide Operating Temperature Range
The operating temperature of Kyocera TCG121WXLRFVNN-AN40 ranges from -30°C to 80°C. Suitable for operation in the vast majority of device environments, eliminating concerns regarding frequent temperature fluctuations or extreme temperature conditions.
3. Integrated LED Driver Board + 50,000-Hour Backlight Lifespan
The integrated driver board eliminates the need for an external driver power supply, simplifying the overall structure, reducing potential failure points, and minimizing installation space. The absence of an external driver design saves on BOM costs and PCB space. With an ultra-long backlight lifespan of 50,000 hours, it is durable enough for 24/7 continuous industrial operation.
4. High Contrast Ratio of 750:1
Clear details in dark areas and no whiting in bright areas ensure text and icons remain visible in both brightly lit workshops and dimly lit server rooms. Reduces eye strain during prolonged viewing, enhancing operational efficiency.
5. Industrial-Standard LVDS Interface
The LVDS interface with a 20-pin connector offers: stable long-distance signal transmission, strong anti-interference capabilities, and broad compatibility with industrial controllers, and embedded PCs.
The basic parameters of Kyocera TCG121WXLRFVNN-AN40 are shown in the table below for your reference:
Custom Cables We support custom cable services for various industrial TFT LCD display modules, including signal cables for LVDS, eDP, TTL, and more. You can freely customize cable length, connector type, pin assignment, and other specifications according to your device structure. Proper cable design not only optimizes internal wiring and enhances anti-interference capability, but also reduces assembly complexity and improves production efficiency. Whether for sample testing or mass production, we offer fast response to meet your structural requirements.
Touch Panel
Both resistive touch and capacitive touch can be customized according to your needs. Resistive touch supports operation with gloves and styluses, features strong anti-interference, oil resistance and lower cost. Capacitive touch supports multi-touch, with sensitive response, smooth operation and longer service life.If you have specific application scenarios and requirements, please feel free to contact us, and we will recommend the most suitable solution for you. Touch screen bonding is a process that tightly bonds the touch screen to the TFT LCD panel, which directly determines display effect, touch accuracy, reliability, and product lifespan. Frame bonding features low cost, simple process and high yield rate, while full bonding delivers more transparent display, better sunlight visibility and stronger structural rigidity. Our bonding factory maintains strict requirements on process, production environment and materials to ensure high stability.
Zhengzhou Hengxinda Technology Co., Ltd. is a supplier focused on industrial-grade LCD displays, touch screens, LCD controller board and custom LCD display solutions. We distribute well-known brands like AUO, Innolux, Sharp, IVO and BOE. Our products feature high stability, wide temperature resistance, long service life and strong environmental adaptability, which are widely used in industrial controls, medical equipment, automotive displays, outdoor terminals, and more. We provide one-stop shopping service, from product selection and sample testing to mass production. Our technical team can help with driver debugging and mechanical integration.Custom touch solutions and various customized cables are also available to meet your diverse project requirements. Welcome to contact us at any time for product consultation and quotation.
With over 10 years of industry experience, we focus on high quality and stability, offering competitive prices. Welcome to contact us for inquiries!
