White LED backlighting, 6/8-bit grayscale option available, matte surface

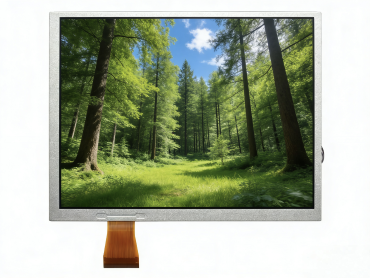

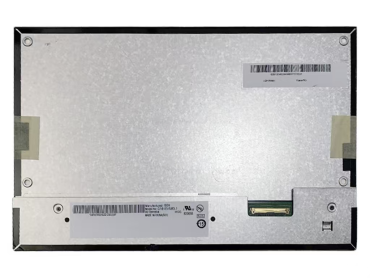

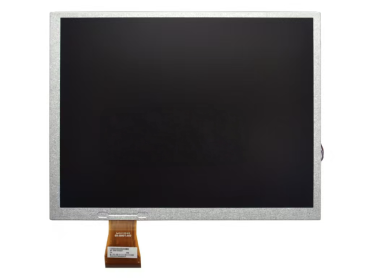

A104SN03 V1 is a 10.4-inch LCD panel that combines industrial stability with consumer electronics compatibility. A104SN03 V1 is the most cost-effective product among all 10.4-inch LCD screens. It can replace N104STN01.0 and be used in any scenario. It features a matte hard-coated TN panel and is suitable for various devices such as industrial control, digital photo frames, and portable DVD players. It offers more than 50 thousand backlight and dual interface (TTL+SPI) compatibility, making it a cost-effective choice for small-sized display solutions.
Brand
AUO
Type
a-Si TFT-LCD
Model
A104SN03 V1
Surface Finish
Matte Surface, Hard Coating (3H)
Size (inch)
10.4
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
228.4(W)×175.4(H)×6.5(D)
Optical Mode
TN
Active Area (WxH mm)
211.2(W)x160.4(H)
Backlight Type
WLED, 50K hours
Viewing Angle
75/75/50/60 (Typ.)(CR≥10)
Interface
TTL (1 ch, 6/8-bit) + SPI , 60 pins , FPC
Resolution
800(RGB)×600,SVGA,96PPI
Response Time
30 (Typ.) (Tr+Td) ms
Brightness (cd/m²)
350
Dispay Colors
262K/16.2M,50% NTSC
Contrast Ratio
500:1
Operating Temperature (°C )
-10~ 60
Operating Voltage
3.3/11/15/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Storage Temperature (°C )
-20~70
Operating Frequency
60Hz
Weight
400±20g
Application
Industrial Control/ Digital Photo Frames/ Portable DVD Players
A104SN03 V1 features a 10.4-inch LCD display with a 50,000-hour long-life WLED backlight, which can significantly reduce the cost of replacement and maintenance for devices. The 3H matte hard coating not only meets the anti-scuffing requirements of industrial scenarios but also provides a clear display with low reflection. The dual interface of TTL + SPI offers high compatibility, enabling it to be adapted to various installation scenarios for industrial equipment and consumer electronics. No additional adapter accessories are required for the adaptation.
HXD is a LCD tft panel supplier that has been for 12 years. We mainly supply LCD tft panels from brands such as AUO, BOE, IVO, Sharp, Innolux, and CHEIMEI. During the production process of each LCD tft screen, we will successively complete appearance inspection, illumination test, 12-hour continuous aging test, high and low temperature environment test from -10℃ to 60℃, etc.. Finally, we provide customized requirements for the size, interface, brightness, appearance, etc. of LCD tft screens and we have a 7×24-hour online technical service team, from communication of customer needs, sample testing, batch installation, there will be dedicated technicians 1V1 to connect and follow up, and according to your needs, we can also provide technical documents such as product specifications and test reports.
1. Q: What is the minimum order quantity for this LCD tft display? A: For the standard model, the minimum order quantity for shipment is 2 pieces. For the customized models (such as touch control, wide temperature range), the minimum order quantity is 20 pieces.
2. Q: If the interface of the device and the LCD tft screen interface do not match, can you provide a conversion solution? A: Yes, we support customizing conversion boards, or providing purchasing suggestions for third-party conversion accessories to help you directly adapt to the device.
3. Q: Will the delivery time for subsequent replenishments be extended after bulk purchasing? A: No, we will reserve inventory for long-term cooperative customers. The delivery time for replenishment orders (≤ 500 pieces) can be compressed to 3-5 days.
4. Q: What is the power consumption of this LCD tft screen? A: The typical power consumption is approximately 3.5W. It belongs to the low-power level of medium-sized screens and can directly be adapted to portable DVDs, small industrial terminals, etc., which are low-power devices.
5. Q: If we need long-term stable supply, can we sign an annual supply agreement? A: Yes, an annual agreement can guarantee the delivery time and also provide exclusive stocking support. Specific terms can be negotiated with the sales manager.
