G104STN01.3

Wide temperature range, white LED backlight, with a lifespan exceeding 50,000 hours, 180-degree flip display, 6/8-bit grayscale options, matte surface

Download PDF Send Message

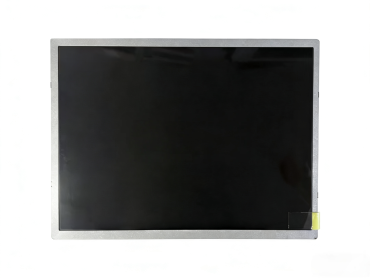

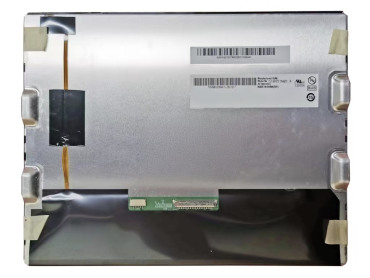

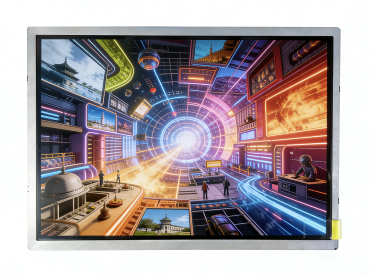

AUO G104STN01.3

AUO G104STN01.3 is a practical 10.4-inch LCD tft display module featuring "lightweight + high adaptability + long battery life": 450cd/m² brightness + 700:1 contrast ratio, matte treatment with anti-glare function, 50% NTSC color gamut for more natural text and image colors; 294g lightweight + 9.3mm thin body, without adding extra weight to the device; 3.3V low-power supply suitable for battery-powered devices, capable of meeting the requirements for both portable terminals and light industrial control scenarios.

Basic Parameter

Brand	AUO	Model	G104STN01.3
Size	10.4 inch	Type	a-Si TFT-LCD,LCD Module
Resolution	800(RGB)×600, SVGA, 96PPI	Pixel Layout	RGB vertical stripes
Display Area	215.4(W)×161.9(H) mm	Appearance Size	227.3(W)×177.5(H)×9.3(D) mm
Brightness(cd/m²)	450 (Typ.)	Contrast Ratio	700:1 (Typ.) (transmission)
Visual Angle	80/80/60/70 (Typ.) (CR≥10)	Surface	Hard coating (3H)
Display Colors	262K/16.2M , 50% NTSC	Display Mode	TN, normally white display, transmissive
Weight	294g (Typ.)	Response Time	10/5 (Typ.) (Tr/Td) ms
Best View	6 o'clock	Backlight	WLED [6S3P] , 50K hours, with LED driver
Working Frequency	60Hz	Application	Industrial Engineering
Interface	20 pins LVDS (1 ch, 6/8-bit) , Terminals	Touch Screen	no
Driving Voltage	3.3V (Typ.)
Environment	Operating temperature: -20 ~70 °C ; Storage temperature: -30 ~80 °C

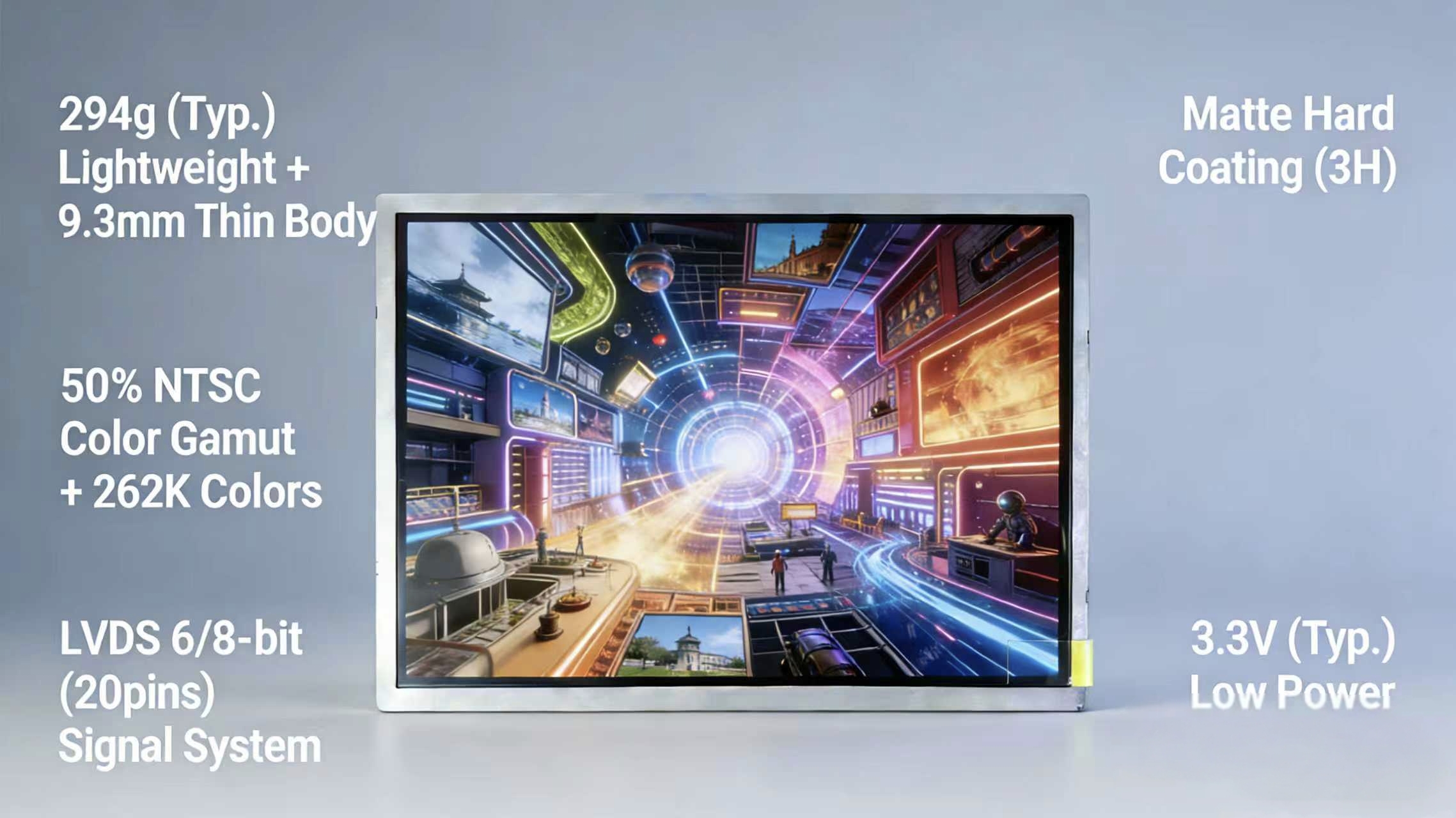

AUO G104STN01.3 TFT LCD Panel Key Features

🌟294g lightweight + 9.3mm thin profile:
Suitable for portable devices, reducing the carrying burden of the terminal products
💫50% NTSC color gamut + 262K colors:
Colors more detailed
🔥LVDS 6/8-bit (20 pins) signal system:
Stable transmission, compact interface, suitable for embedded designs
💎Matte Hard coating (3H):
Preventing environmental light reflection, scratch-resistant
⭐3.3V (Typ.) Power Supply:
Low power consumption, Energy-saving adaptation

AUO G104STN01.3 TFT LCD Panel Application Scenarios

Industrial control: HMI interface, CNC machine screens etc.

Automotive industry: LCD dashboards, central control screens etc.

Smart home: Smart door lock touch screens, smart robot screens etc.

Special applications: Militarydisplay control screens, POS machine screen etc.

Commercial display: Digital signage, ATM machine screens, smart vending machines etc.

Medical health: Electrocardiogram monitors, ultrasound diagnostic instrument screens etc.

HXD Packaging, Shipping & Delivery

△ Packaging Details

All products are packaged with professional protective solutions during transportation.

• Small-sized products: Packed in trays+ cartons.

• Large-sized products: Packed in foam slots+cartons.

• Custom packaging solutions are available to fully meet personalized packaging requirements.

△ Shipping Details

• Small-quantity orders: We prioritize Air-Express including DHL, Fedex etc.

• Large-quantity orders: Shipping can be arranged by your designated cargo agent in China;

We can also provide full-range air or sea transportation services via our cooperative cargo agents.

△ Delivery Details

• Ready-made samples: Available for shipment within 1 week.

• Customized samples: Delivery time ranges from 1 to 2 weeks.

• Mass production orders: Production and delivery time is 3 to 4 weeks.

HXD Introduction

HXD is a professional supplier that focuses on providing you with high-quality LCD tft display solutions covering brands such as AUO, BOE, IVO, CHEIMEI, Innolux, and Sharp etc. We also have our own independent R&D production capacity and can provide supporting accessories such as driver boards, cables, and touch screens that are compatible with LCD screens, achieving "LCD panel + accessories" one-stop supply. With 12 years experience, HXD not only provides standard products but also supports OEM & ODM customization services. We hope to become a trusted LCD tft display partner for you.

Welcome to contact us now!

FAQs:

Q: How can I get some samples?

A: We don’t provide free samples, but we can apply a discount to your bulk order once you proceed with mass production.

Q: What is the MOQ?

A: The minimum order quantity varies by product type. Please coordinate with our sales team to confirm the specific MOQ for your desired item.

Q: How do you control quality?

A: All materials we purchase for making any orders are high quality and RoHS compliant. We use advanced testing instruments to conduct 100% inspection on every unit prior to shipment.

Q: Does your product have any warranty?

A: Absolutely—we provide a 12-month warranty for all our products.

Q: What's your payment method?

A: Accepted payment methods include T/T, PayPal, etc.

For samples: Full payment is required upfront.
For mass production: 50% deposit to confirm the order, with the remaining 50% settled before shipment.

Q: Do you offer custom solution?

A: Yes—if our standard products don’t meet your needs, we’re able to develop tailored solutions to meet your specific requirements.

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
BOE	ET104S0M-N15	10.4"	800×600	350 nits	800:1	WLED	LVDS	20	-20~70℃
BOE	GV104X0M-N10	10.4"	1024×768	450 nits	1100:1	WLED	LVDS	30	-30~85 ° C
BOE	BA104S01-300	10.4"	800×600	350 nits	800:1	WLED	LVDS	20	-20~70 °C
BOE	BA104S01-200	10.4"	800×600	300 nits	800:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040SVF1MB00	10.4"	800×600	400 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040SVN1ME10	10.4"	800×600	350 nits	500:1	WLED	TTL	60	-20~70 ° C
Tianma	P1040XGF1MB01	10.4"	1024×768	500 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040SVF1ME00	10.4"	800×600	400 nits	1200:1	WLED	LVDS	20	-20~70 ° C
AUO	G104STN01.6	10.4"	800×600	700 nits	800:1	WLED	LVDS	20	-30 ~80 °C
AUO	G104VAN01.0	10.4"	640×480	450 nits	1000:1	WLED	LVDS	20	-30 ~85 °C
AUO	G104VAN02.0	10.4"	640×480	450 nits	1000:1	WLED	TTL	31	-20 ~70 °C
AUO	G104SN03 V5	10.4"	800×600	230 nits	500:1	WLED	LVDS	20	-20 ~70 °C
AUO	G104SN03 V1	10.4"	800×600	230 nits	500:1	CCFL	LVDS	20	-20 ~70 °C
AUO	G104VTN01.0	10.4"	640×480	370 nits	700:1	WLED	Parallel RGB	40	-20 ~70 °C
