On-cell touch, WLED backlighting, a lifespan exceeding 50,000 hours, including an LED driver, connector surface mount, mirror finish on the surface, and SNB.

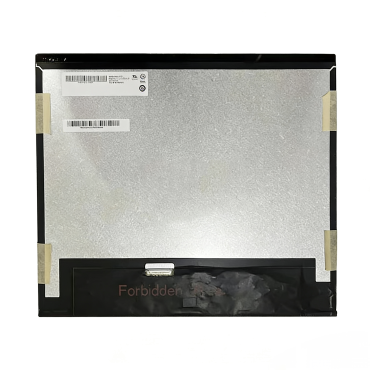

AUO G150XAB03.0 is a 15-inch professional-level TFT LCD display panel specifically designed for those who have high requirements for display quality, durability, and touch experience. The typical brightness of 400 cd/m2 and the high contrast ratio of 1000:1, combined with the mirror surface treatment, can present transparent and bright colors as well as deep black gradations. It integrates On-Cell Touch technology and has a USB interface that is plug-and-play, requiring no additional drivers, significantly simplifying the system integration process. The WLED backlight module has an ultra-long lifespan of 50K hours, combined with the integrated LED driver, not only reducing maintenance costs over the long term but also maintaining stable brightness performance. All these ensure its continuous and stable operation in harsh conditions such as industrial sites and vehicle environments.
♦ Model HXD-H58, HDMI+DC12V input, LVDS output, operating temperature-20 to 70, support maximum resolution of 1920*1080
♦ Model YT-VDH58 V1.1 HDMI +DC12V input, LVDS output, operating temperature-40 to 70, supports maximum resolution of 1920*1200
♦ Model HXD-VDH 58L V1.1 HDMI +DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200
♦ Model HXD-V1680 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200
♦ Model HXD-HP58UWV V1.1 HDMI+DC12V input, LVDS output, support audio amplifier: 2 x 10W, support maximum resolution 1920*1200
♦ Model HXD-VD68 V1.1 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200
◊ The supporting LCD driver board adopts stable industrial scheme. All devices meet industrial standards. LCD driver board has been strictly tested and demonstrated. The recommended LCD driver board is matched according to the parameters of the LCD panels.
◊ It expands the application of LCD panels. Detailed parameters of LCD driver board are described in detail on other pages.
Using On-Cell touch technology, the touch layer is integrated with the liquid crystal layer. This design results in higher light transmittance and more sensitive touch response. The USB interface makes system integration simpler, eliminating the need for an additional controller.
With an 89° full-viewing angle (CR≥10), the picture's color and brightness remain consistent whether viewed from the front, side, top or bottom. It is particularly suitable for scenarios where multiple people are collaborating and watching.
Zhengzhou Hengxinda Technology Co., Ltd is a profeesional LCD TFT display supplier from China, mainly providing brands sunch as AUO/BOE/IVO/Sharp/Innolux etc. We can offer the following service:
1. Customized Adaptation Services: We support custom LCD panels in various sizes and models. From measurement to production, we provide one-on-one follow-up to ensure the glass cover perfectly fits the screen without affecting the original structure of the equipment.
2. Rigorous Quality Inspection: Every glass cover undergoes multiple tests for impact resistance, light transmittance, temperature tolerance, and more, meeting industrial-grade standards to ensure flawless products delivered to our customers.
3. Comprehensive After-Sales Support: Products come with a 12-month warranty. In case of non-human-caused issues such as glass breakage or detachment, we provide free replacement services.
4. "One-Stop Shopping" Experience: In addition to LCD TFT displays, we also supply a full range of related accessories, including LCD controller boards, LCD touch screens, light sensors, and compatible cables. You can also opt for touch screen bonding services or glass bonding services, enabling us to deliver an integrated display solution—from the screen to its peripheral components.
5. Reliable Logistics Shipping: We support various shipping methods, including air, sea, and land freight, and can flexibly adjust to your delivery timeline requirements. Standard LCD TFT panels products are shipped within 48 hours to 7 days, while customized products are delivered within 7 to 20 days.
FAQs:
1. Do you support free samples?
A: No, samples must be purchased at the retail price. When purchasing in bulk, the sample cost can be fully deducted from the corresponding payment. The sample delivery cycle is 1-2 working days.
2. How long is the cycle for customized complementary services (such as touch screen + bonding)?
A: If you choose the standard configuration of touch screen + bonding service, the order cycle is 7-10 working days; if you need a touch screen with customized special touch parameters, the cycle is 10-21 working days.
3. Is parameter customization supported?
A: Parameters such as interface type, brightness, and surface treatment can be customized. Customization requirements must meet a minimum order quantity of 500 units. Specific details can be discussed with us.
4. What is the after-sales guarantee for this product?
A: Provide 12 months full machine warranty (including LCD panel and supporting driver board). Non-human damage (such as panel failure, backlight not working) can enjoy free repair / replacement services; beyond the warranty period, provide lifetime cost-price maintenance services.
5. Is there a price discount for bulk purchases?
A: Bulk purchases (≥100 units) can enjoy a stepped price discount. The larger the purchase volume, the higher the discount. Specific quotations can be provided by contacting us.
