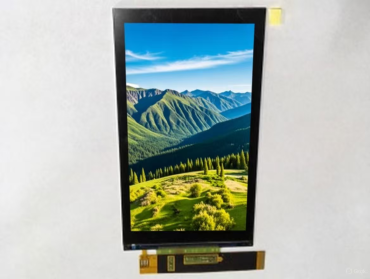

LQ055T3SX02Z

sRGB, Portrait Mode, White LED Backlight

Product Description

Sharp LQ055T3SX02Z is a flagship-level Oxide TFT-LCD panel display. This 5.5-inch product offers a display as smooth and natural as the native effect with a resolution of 1080 (RGB) × 1920 (FHD) at 403 PPI. With a brightness of 450 cd/m² and a contrast ratio of 1000:1, combined with the New Mode2 optical mode, the colors are vivid and clear, and the details are easily visible even in bright or dark environments. The compact size of 70.84 × 128.56 mm and the lightweight design of 23g not only meet the space requirements of precision equipment but also reduce the burden on the end product.

Basic Parameter

Brand	Sharp	Type	Oxide TFT-LCD
Model	LQ055T3SX02Z	Surface Finish	---
Size (inch)	5.5	Pixel Layout	RGB Vertical Strip
Outline Dimension (WxHxD mm)	70.84(W)×128.56(H)×1.65(D)	Optical Mode	New Mode2
Active Area (WxH mm)	68.04(W)x120.96(H)	Backlight Type	WLED [6S2P]
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Interface	MIPI (4 data lanes), 39 pins
Resolution	1080(RGB)×1920,FHD,403PPI	Response Time	35 (Typ.) (Tr+Td) ms
Brightness (cd/m²)	450	Display Colors	16.7M, 85%NTSC
Contrast Ratio	1000:1	Operating Temperature (°C )	-20~ 60
Operating Voltage	1.8/5.8/5.6V (Typ.)(VDDI/VSP/VSN)	Storage Temperature (°C )	-30~70
Operating Frequency	60Hz	Weight	23.0g
Application	Smart Phone

Sharp LQ055T3SX02Z TFT LCD Panel Key Features

Sharp LQ055T3SX02Z TFT LCD Panel Application Scenarios

• Core fields: Smartphones;
• Expansion fields: Handheld medical detectors, industrial portable operation screens, in-vehicle passenger seat entertainment screens, smart home control screens;
• Typical terminal cases: Ultra-thin smartphones, portable ultrasound diagnostic devices, industrial field handheld PADs.

HXD Service

FAQ

Q1: Can Sharp LQ055T3SX02Z be clearly seen in strong outdoor light?
A: With a brightness of 450cd/㎡ and the New Mode2 optical mode, the content can be clearly displayed even in outdoor sunlight, without the need for additional shading structures.

Q2: Can you provide reference cases for the driver program?
A: Yes! We will provide corresponding MIPI interface driver code examples based on your terminal main control chip, helping to quickly complete the debugging.

Q3: How long is the delivery cycle for bulk purchases?
A: Regular orders will be shipped within 7-10 working days; if you need to reserve stock, you can lock in the inventory in advance to ensure shipment within 3 working days.

Q4: Can you provide the accompanying accessories?
A: Of course! We provide driver boards, touch screens, light-sensitive materials and other related accessories and parts. If you need them, please contact our sales manager.

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
Sharp	LS055D1SX05(G)	5.5"	3840×2160	530 nits	1200:1	WLED	MIPI	60	-20 ~ 70 °C
Sharp	LS055R1SC01	5.5"	1440×2560	480 nits	1300:1	WLED	MIPI	45	-20 ~ 60 °C
Sharp	LS055R1SX03	5.5"	1440×2560	450 nits	1300:1	8S2P WLED	MIPI	50	-20 ~ 60 °C
Sharp	LQ055T3SX02	5.5"	1080×1920	450 nits	1000:1	6S2P WLED	MIPI	39	-20 ~ 60 °C
Sharp	LS055R1SX04	5.5"	1440×2560	450 nits	1300:1	8S2P WLED	MIPI	50	-20 ~ 60 °C
Sharp	LQ050T5DG01	5"	400×240	600 nits	800:1	4S2P WLED	CMOS	40	-30 ~ 85 °C
Sharp	LQ050Q5DR01R	5"	320×240	380 nits	100:1	4S2P WLED	Parallel RGB	40	-30 ~ 85 °C
Sharp	LQ050Q3DG01	5"	320×240	- nits	-	1 pcs CCFL	Parallel RGB	-	-
Sharp	LQ050Y3DC01	5"	800×480	300 nits	600:1	7S2P WLED	Parallel RGB	40	-20 ~ 70 °C
Sharp	LQ050Q5DR01	5"	320×240	380 nits	100:P1	1 pcs CCFL	Parallel RGB	40	-30 ~ 85 °C
Sharp	LQ5AW126	5"	320×240	- nits	-	1 pcs CCFL	-	-	-30 ~ 85 °C
Sharp	LQ050T1SX05	5"	1080×1920	450 nits	1000:1	WLED	MIPI	34	-20 ~ 60 °C
