Wide color gamut, DCI-P3, sRGB, Portrait mode, high brightness, white LED backlight with pixel rendering

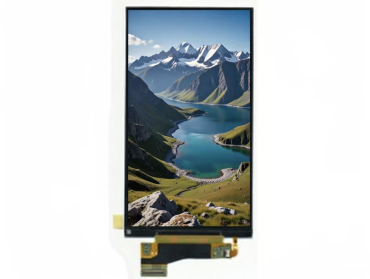

Sharp LS055D1SX05(G) is an excellent CG-Silicon TFT-LCD display solution for smartphones and HMDs / VR / AR: with a high brightness of 530cd/m² and a contrast ratio of 1200:1, the picture remains clear and vivid even in strong light; featuring an ultra-clear resolution of 2160×3840 and 658PPI, every detail is clearly presented; with a response time of 30ms and no ghosting, it is ultra-thin at 1.34mm and lightweight at 17g, balancing smooth performance and portability.
Brand
Sharp
Type
CG-Silicon TFT-LCD
Model
LS055D1SX05(G)
Surface Finish
---
Size (inch)
5.5
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
69.84(W)×128.76(H)×1.34(D)
Optical Mode
New Mode2
Active Area (WxH mm)
68.04(W)x120.96(H)
Backlight Type
WLED
Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Interface
MIPI (4 data lanes), 60 pins
Resolution
2160(RGB)×3840,UHD,658PPI
Response Time
30 (Max.) (Tr+Td) ms
Brightness (cd/m²)
530
Display Colors
16.7M, 90%NTSC
Contrast Ratio
1200:1
Operating Temperature (°C )
-20~ 70
Operating Voltage
1.36/1.85/5.8/-5.6V (Typ.)(DVDD/VDD/VSP/VSN)
Storage Temperature (°C )
-30~70
Operating Frequency
60Hz
Weight
17.0g
Application
Smart Phone/HMD VR AR
1. What is the power consumption level of Sharp LS055D1SX05(G)? A: Sharp LS055D1SX05(G) adopts WLED backlighting design and supports multi-voltage low-power mode (such as 1.36V power supply). Its power consumption is at a medium-low level among displays of the same specification. Combined with the power consumption optimization of the terminal, it will not significantly affect the product's battery life.
2. How long is the service life of Sharp LS055D1SX05(G)? A: Under normal usage conditions, the backlight lifespan can exceed 50,000 hours; we offer industry-standard quality warranty services, and the specific warranty terms can be agreed upon based on the order. 3. Can you customize display parameters (such as brightness, color gamut)? A: Currently, this model is a standardized product and does not support single-batch customization; if you have a large-scale customization requirement, you can contact our R&D team to assess the feasibility, and we can develop an exclusive model based on the requirements. 4. Is the touch function of Sharp LS055D1SX05(G) integrated? A: Sharp LS055D1SX05(G) is a pure display panel and does not include a touch function. You need to pair it with a touch module according to the terminal requirements; we can also recommend suitable touch solutions. 5. How long is the delivery cycle for bulk purchases? A: The delivery cycle for regular bulk orders is 2-4 weeks (subject to order quantity adjustment); if you have an urgent need, you can communicate with us in advance, and we will coordinate the production line to prioritize production.
