Home > LCD Panel
Portrait mode, white LED backlighting

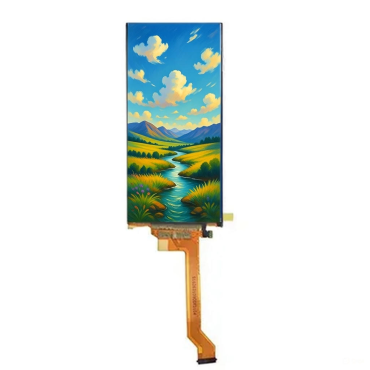

Sharp LS055R1SC01 is a 5.5-inch TFT-LCD panel. Despite its ultra-thin size of 1.45mm, it features a Quad-HD resolution (1440×2560) and an extremely high precision of 537PPI, elevating the display quality of small screens to a new level. It achieves a brightness of 480cd/m² while maintaining a lightweight design of 25.0g, and is compatible with a wide temperature range of -20~60℃, balancing both consumer experience and scene compatibility.
Brand
Sharp
Type
CG-Silicon TFT-LCD
Model
LS055R1SC01
Surface Finish
---
Size (inch)
5.5
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
70.87(W)×128.45(H)×1.45(D)
Optical Mode
New Mode2
Active Area (WxH mm)
68.04(W)x120.96(H)
Backlight Type
WLED
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Interface
MIPI (4 data lanes), 45 pins
Resolution
1440(RGB)×2560,Quad-HD,537PPI
Response Time
35 (Max.) (Tr+Td) ms
Brightness (cd/m²)
480
Display Colors
16.7M, 70%NTSC
Contrast Ratio
1300:1
Operating Temperature (°C )
-20~ 60
Operating Voltage
1.8/5.75/-5.75V (Typ.)(IOVDD/AVDD+/AVDD-)
Storage Temperature (°C )
-30~70
Operating Frequency
60Hz
Weight
25.0g
Application
Smart Phone
1. 537 PPI Quad-HD resolution: Pixel density is close to retina level, with no jagged edges on text and icons, positioning it as a "high-definition flagship" for high-end devices. 2. CG - Silicon TFT-LCD technology: Display response speed is more stable, reducing the occurrence of ghosting and color deviation over long-term use, and enhancing the durability of the screen. 3. 45-pin MIPI interface: The pin layout of the interface is more compact, suitable for circuit design of lightweight devices. 4. 1300:1 high contrast ratio + 70% NTSC color gamut: Color transitions are more natural, darker areas have richer details, enhancing the visual immersion in video, game, and other scenarios.
Sharp LS055R1SC01 is designed for high-end smart phone terminals: Quad-HD resolution, high brightness and fine display capabilities can serve as the main display screen for flagship phones, meeting the ultimate demands of high-end users for picture quality and visual experience.
1. Will the 537PPI screen significantly increase the power consumption of the mobile phone?
A: We have adopted the CG - silicon low-power driver solution. The power consumption under Quad-HD resolution is only 8% higher than that of the FHD screen. It also supports dynamic resolution adjustment, and the daily usage power consumption is close to that of the FHD screen.
2. The 45-pin interface is incompatible with the 50-pin interface of our existing motherboard. Can it be adjusted?
A: We can coordinate with the original manufacturer to customize and adapt the interface pins. The cycle is approximately 7 working days. The interface definition document needs to be provided by the customer.
3. How does the screen's brightness decline in a wide temperature environment?
A: Under extreme temperatures of -20℃ and 60℃, the brightness decline does not exceed 10%, and it can still maintain clear display.
