Wide temperature range, easy-to-replace backlight, white LED backlight, lifespan exceeding 70,000 hours, 180-degree flip display, selectable 6- or 8-level grayscale.
NEC NL6448BC26-27 is an 8.4-inch industrial LCD display featuring a long-life backlight, wide-temperature range and vibration resistance, and a brightness of 500 cd/m². NL6448BC26-27 is an ideal display choice for demanding environments such as industrial, medical, and rail transportation applications. It ensures long-term, stable operation of equipment while providing end users with a clear and reliable visual interaction experience. With a 640×480 VGA resolution, 500 cd/m² brightness, 1000:1 contrast ratio, and a choice of 6- or 8-bit grayscale (ColorXcell technology), along with 180° flip capability and viewing angles of 80/80/80/60°, the industrial LCD display offers a clear image, ensuring readability in indoor bright light and multi-angle viewing of information, enhancing operational efficiency and data reading accuracy. NEC NL6448BC26-27 is currently in mass production, with a stable supply chain and ample stock on hand, ensuring long-term availability.

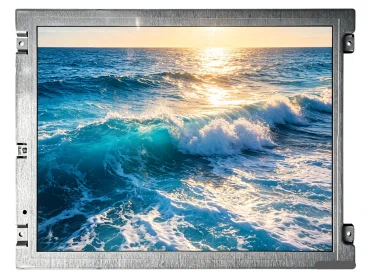

| Reference Picture | Size | 8.4-inch | Visual Angle | 80/80/80/60 |
| Brand | NEC | Backlight | 3 strings WLED |
| Model | NL6448BC26-27 | Interface | LVDS (1 ch, 6/8-bit) | |
| Resolution | 640(RGB)×480, VGA | Operating Temperature | -30 ~ 80 °C | |
| Brightness | 500 cd/m² | Production State | In Production |
Detailed specifications of NEC NL8060BC21-11D are in the below table.
| Parameter | Specification |
| Brand | NEC |
| Model | NL6448BC26-27 |
| Size | 8.4-inch |
| Resolution | 640(RGB)×480, VGA |
| Pixel Density | 95 PPI |
| Aspect Ratio | 4:3 |
| Display Technology | TN, Normally White, a-Si TFT LCD |
| Brightness | 500 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 80/80/80/60 |
| Response Time | 3/15 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.7M, 40% NTSC |
| Color Temperature | 6485K |
| Interface | LVDS (1 ch, 6/8-bit) |
| Connector Type | JAE, FI-SE20P-HFE |
| Backlight Type | 3 strings WLED |
| Backlight Life | 70K |
| Built-in LED Driver Board | No |
| Touch Function | No (Custom touch screen can be matched based on your needs) |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Active Area | 170.88(W)×128.16(H) mm |
| Visual Area | 174.0(W)×131.4(H) mm |
| Outline Dimension | 200×152×8.2 mm (H×V×D) |
| Surface Treatment | Clear, Hard Coating (3H) |
| Weight | 260/280g (Typ./Max.) |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Input Voltage (Logic) | 3.3 V (Typ.) |
| Input Current (Logic) | 250/370mA (Typ./Max.) |
| Input Voltage (Backlight) | 13.3/15.0/17.0V (Min./Typ./Max.) |
| Input Current (Backlight) | 50/55mA (Typ./Max.) |
| Replaceable Backlight | Replaceable (84LHS16) |
| Power Consumption | 3.1W (Typ.) |
| Sunlight Readability | No |
| RoHS | Yes |
1. What is the price of the NEC NL6448BC26-27 LCD Panel?
A: Our pricing is flexible and adjusted based on order quantity, delivery time, and payment method. We offer tiered pricing for bulk purchases. The larger the single purchase order, the more favorable the unit price; long-term partners are also eligible for additional contract pricing. Please provide your specific requirements (quantity, delivery time), and we will issue an accurate quote as soon as possible.
2. Is NEC NL6448BC26-27 currently in stock?
A: We currently have ample stock of NEC NL6448BC26-27 and can arrange for prompt shipment. For larger orders, we will coordinate with the manufacturer based on your order volume; the standard lead time is 1–4 weeks.
3. How is product quality guaranteed?
A: We guarantee that all NL6448BC26-27 units we sell are genuine, factory-sealed products from NEC. Before shipment, all products undergo rigorous optical, electrical, and environmental reliability testing to meet industrial-grade standards. We also provide a 12-month warranty; during this period, we will repair or replace the product free of charge for any quality issues resulting from non-human factors.
4. What is the warranty for NEC NL6448BC26-27?
A: Warranty Period: 12 months from the date the customer receives the product.
Warranty Coverage: Covers display defects of the panel itself, backlight failures, electrical malfunctions, and other issues not caused by human error or misuse.
Exclusions: Does not include failures caused by human error or improper operation, such as electrostatic discharge, incorrect wiring, or use in environments exceeding specified conditions.
5. Can you customize based on our equipment requirements?
A: We support a certain degree of customization:
We can provide customized resistive or capacitive touch screens as part of an integrated lamination solution; we can assist with adapting driver boards and adapter boards to enable interface conversion (e.g., LVDS to HDMI); for special backlight brightness or wide-temperature requirements, please consult us for custom solutions—specific technical feasibility and minimum order quantities will be evaluated.
6. Can the backlight of NEC NL6448BC26-27 be replaced separately?
A: Yes, the backlight can be replaced separately. NEC NL6448BC26-27 features a replaceable white LED backlight design for easy maintenance. We can provide supporting components such as backlight assemblies, driver boards, flex cables, and adapter boards, as well as repair services to help you reduce the cost of replacing the entire unit.
