Wide Color Gamut, sRGB color gamut, white LED backlight, service life ≥ 50,000 hours, integrated LED driver, front-mounted terminal

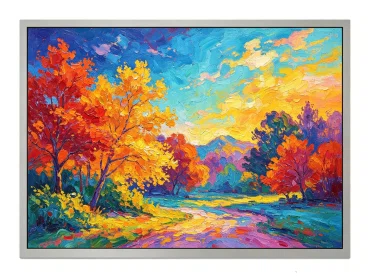

BOE ZV190E0M-N10 is a 19.0-inch LCD panel using a-Si TFT-LCD technology. It features WLED backlighting with an LED driver, but no touch function. ZV190E0M-N10 operates in temperatures ranging from -20 to 70°C and is vibration resistant to 1.05G (10.3 m/s²). For backlight, it uses an 11S4P WLED edge-lit light source with a lifespan of 50,000 hours. ZV190E0M-N10 employs an LVDS (2-channel, 8-bit) signal interface with a total of 30 pins, using terminal connections. BOE ZV190E0M-N10 is a 19-inch industrial TFT LCD display module featuring 1280×1024 SXGA resolution, ADS display technology, and wide viewing angles. Designed for industrial automation, medical systems, transportation equipment, marine electronics, and energy control systems, this Industrial LCD display offers excellent image quality, long service life, and reliable performance in harsh environments. At Hengxinda, we provide not only the original BOE LCD panel but also complete display solutions including touch screens, LCD controller boards, LVDS cables, optical bonding, and long-term replacement support.
Detailed Specifications are in the following table. You can click the "download" to get BOE ZV190E0M-N10 Datasheet and Specification.
Parameter
Specification
Brand
BOE
Model
ZV190E0M-N10
Size
19-inch
Resolution
1280(RGB)×1024, SXGA
Pixel Density
86 PPI
Aspect Ratio
5:4
Display Technology
ADS, Normally Black, a-Si TFT LCD
Brightness
450 cd/m²
Contrast Ratio
1000:1
Viewing Angle
89/89/89/89
Response Time
20 (Typ.)(Tr+Td) ms
Display Colors
16.7M, 90% NTSC
Color Temperature
6485K
Interface
LVDS (2 ch, 8-bit)
Connector Type
JST-Purple, SM08B-GHS-TB
Backlight Type
WLED
Backlight Life
50K hours
LED Driver Board
Yes
Touch Function
No(Custom touch upgrades upon your request)
Operating Temperature
-20 ~ 70 °C
Storage Temperature
-20 ~ 75 °C
Vibration Resistance
1.05G (10.3 m/s²)
Active Area
374.784×299.827 mm (H×V)
Visual Area
378.8×303 mm (H×V)
Outline Dimension
396× 324 × 9.9 mm (H×V×D)
Surface Treatment
Matte surface (Haze 25%), Hard Coating (3H)
Weight
1.80Kgs (Typ.)
LCD Panel Power Consumption
19.2/23.5W (Typ./Max.)
Input Voltage (Logic)
5.0V (Typ.)
Input Voltage (Backlight)
34.1/36.3V (Typ./Max.)
Power Consumption
16.2/18W (Typ./Max.)
Sunlight Readability
No, Indoor Use
RoHS
Hengxinda Factory specializes in manufacturing complete supporting accessories for LCD panels, covering four major product categories: touch screens, controller boards, backlight driver boards, and dedicated cables. All accessories are independently developed and manufactured in-house and are compatible with a wide range of industrial LCD panels. We provide both standard stock products and customized solutions, offering a one-stop service for LCD integration, debugging, and wiring requirements. Our products feature strong compatibility, stable quality ensured through strict factory testing, and dedicated technical support services. We support both small and large volume orders.
We supply three types of touch screens: Resistive Touch Screens, Capacitive Touch Screens, and Infrared Touch Screens, suitable for different operating environments and application requirements. All touch screens can be matched with both standard and customized LCD panels, ensuring excellent bonding performance and stable touch signal transmission. We support customization of screen size, interface, and bezel design to meet special equipment integration requirements.
Our LCD controller boards are equipped with common input interfaces such as HDMI, VGA, AV, and Type-C, while also supporting customization of special interfaces including DP and MIPI. They support both LVDS and eDP signal outputs and are compatible with LCD panels up to 4K resolution. Extensive customization options are available, including display parameters, power-on sequence settings, boot logos, and other panel configurations. The controller boards can be integrated directly with our touch screens to create an all-in-one touch display solution. We provide free compatibility testing and configuration based on the customer's LCD panel model, ensuring plug-and-play operation.
We manufacture a complete range of LCD panel-related connection cables. All cables are fully compatible with our controller boards, touch screens, and backlight driver boards, ensuring maximum system integration. We support customization of cable length, connector type, and pin assignments to accommodate various equipment structures.
BOE ZV190E0M-N10 19-inch industrial LCD display is widely used across a variety of professional industries where display reliability and long-term stability are critical. Thanks to its SXGA 1280×1024 resolution, wide viewing angles, 450 nits high brightness, and industrial-grade operating temperature range, this industrial LCD display is an ideal solution for industrial automation equipment, CNC machine control systems, PLC terminals, HMI interfaces, industrial computers, robotics systems, and factory monitoring platforms. In the medical field, the LCD panel is commonly integrated into patient monitoring systems, ultrasound equipment, diagnostic workstations, medical imaging devices, and healthcare information terminals where image clarity and operational stability are essential. The TFT LCD display is also suitable for transportation applications, including railway control systems, traffic monitoring equipment, fleet management terminals, vehicle information displays, and intelligent transportation systems. In addition, marine navigation systems, radar displays, offshore control consoles, power monitoring equipment, mining machinery, oil and gas exploration systems, and renewable energy control platforms can all benefit from the industrial LCD panel's dependable performance in demanding environments.
As a professional industrial LCD display supplier, Hengxinda not only provides original BOE ZV190E0M-N10 panel but also offers complete display integration services to help customers reduce development time and sourcing costs. We can provide capacitive touch screens, resistive touch screens, LCD controller boards, custom cables, optical bonding services, and custom display solutions according to specific project requirements. Whether customers are developing new equipment, maintaining existing systems, or searching for a compatible replacement display, Hengxinda can provide professional technical support and long-term supply solutions. With years of experience serving industrial automation, medical equipment, transportation, marine electronics, energy, and mining industries, we are committed to delivering reliable display products, stable supply channels, and responsive engineering support for customers worldwide.
Request a Quote for BOE ZV190E0M-N10
Need price, stock information, technical support, or replacement recommendations?
Contact Hengxinda today for a fast quotation and professional engineering assistance.
A: Yes. BOE ZV190E0M-N10 is an in-production model with ample stock, ensuring stable supply for at least three years. In-stock items are available for immediate shipment at competitive prices. Please contact us for current inventory information.
A: For outdoor applications, high-brightness customization is available.BOE ZV190E0M-N10 has a brightness of 450 nits. The screen content is clearly visible in semi-outdoor or strong indoor lighting conditions. We recommend using a higher brightness LCD panel.
A: Yes. Capacitive and resistive touch panels are available. You can also choose if the LCD panel is bonded with touch panel. Two bonding methods: air bonding and frame bonding.
A: Yes. We offer complete LCD controller board solutions. Extensive customization options are available, including display parameters, power-on sequence settings, boot logos, and other panel configurations. The controller boards can be integrated directly with our touch screens to create an all-in-one touch display solution.
A: Yes. Please contact our sales manager, our engineers can recommend compatible alternatives based on your specific application and devices.
