Wide temperature range, white LED backlight, lifespan greater than 50,000 hours, up/down and left/right flip display, 6/8-bit grayscale selectable, matte surface.

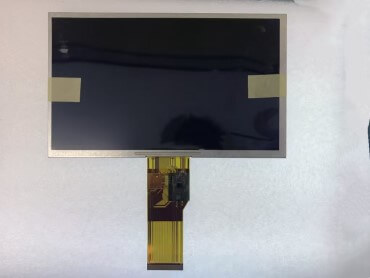

AUO A070VTN06.4 is a 7.0-inch wide-temperature industrial LCD display module using a-Si TFT-LCD technology. It features WLED backlighting but lacks a LED backlight driver board and touch functionality. For backlight, A070VTN06.4 employs a 3S3P WLED side light source with a lifespan of 50,000 hours. It uses a Parallel RGB (1 ch, 6/8-bit) signal interface with a total of 50 pins, connected via FPC, and operates at 3.3/10.4/16/-7V (Typ.) (DVDD/AVDD/VGH/VGL). It can operate and store in temperatures ranging from -30 to 80°C. AUO A070VTN06.4 is recommended for use in industrial control equipment such as data terminal displays, HMI control panels, and automation equipment display panels; automotive displays such as car navigation screens and vehicle control panels; medical testing equipment; and smart home control devices. The basic parameters of AUO A070VTN06.4 are in the following table.
Brand
AUO
Type
a-Si TFT-LCD, LCM
Model
A070VTN06.4
Surface Finish
Matte, Hard Coating (3H)
Size (inch)
7.0
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
164.9(W)×100(H)×5.9(D) mm
Optical Mode
TN, Normally White Display, TM
Active Area (HxV mm)
154.08(H) × 85.92(V) mm
Backlight Type
3S3P WLED, 50K hours, without LED driver
Visual Area
157.1(H) × 90.92(V) mm
Interface
Parallel RGB (1 ch, 6/8-bit) , 50 pins , FPC
Optimal Visual Angle
Full-view
Viewing Angle
75/75/55/65 (Typ.)(CR≥10)
Resolution
800(RGB)×480, WVGA, 16:9
Response Time
25 (Typ.)(Tr+Td) ms
Brightness (cd/m²)
500
Display Colors
262K/16.2M, 50% NTSC
Contrast Ratio
500 : 1 (Typ.) (TM)
Operating Temperature (°C )
-30 ~ 80
Operating Voltage
3.3/10.4/16/-7V (Typ.)(DVDD/AVDD/VGH/VGL)
Storage Temperature (°C )
Operating Frequency
60Hz
Power Consumption
1.86W (Max.)
Application
Industrial Control/ In-Vehicle Display Panel
Touch Function
No
LCD Controller Board/LCD Driver Board We provide comprehensive driver solutions for industrial TFT LCD panels, covering adapter boards and driver boards for common interfaces such as LVDS, eDP, MIPI, VGA, and HDMI. Whether you are using a standard LCD panel or a special specification LCD panel, we can help you quickly achieve signal conversion and screen brightness, significantly shortening your development cycle. In addition, if you have functional customization requirements for the driver board—such as OSD menu, wide voltage input, or temperature protection—please feel free to contact us. Our technical team will fully cooperate to develop the most suitable driver solution tailored to your needs.
Touch Panel
We offer three major types of touch panels: resistive touch panel, capacitive touch panel, and infrared touch panel, covering a wide range of applications including industrial control, medical equipment, automotive displays, and self-service terminals. Based on your operating environment, accuracy requirements, and cost budget, you can flexibly choose the touch solution that best fits your device. Additionally, we support professional touch panel bonding services, including both frame bonding and air bonding. These processes effectively improve optical performance, dust resistance, and shock resistance, making your device more competitive in the market.
FAQs: Q1. Does AUO A070VTN06.4 have built-in touch functionality?
A: No. AUO A070VTN06.4 is a pure LCD display module. If touch functionality is required, an additional touchscreen needs to be configured. We offer matching resistive, capacitive, and infrared touch screens, and also provide LCD panel/touch panel bonding services. Please contact our sales manager for details.
Q2. What color input formats doesAUO A070VTN06.4 support?
A: AUO A070VTN06.4 supports 262K colors (6-bit input) or 16.7M colors (8-bit input), selectable via the 6/8-bit mode of the Parallel RGB interface. The color gamut is 50% NTSC.
Q3. Is AUO A070VTN06.4 suitable for outdoor or automotive high-temperature environments?
A: Yes. The operating temperature range is -30 ~ 80 °C, and the storage temperature is also -30 ~ 80 °C, making it ideal for harsh environments such as automotive, industrial, and outdoor use. However, because its brightness is only 500 nits, if you plan to use tAUO A070VTN06.4 in direct sunlight outdoors, we recommend purchasing a high-brightness LCD screen of the same size.
Q4. What is the recommended viewing angle?
A: The recommended viewing angle is at 6 o'clock (i.e., when the screen is placed vertically, looking upwards is the optimal viewing angle). This is a typical characteristic of TN panels.
Q5. Is AUO A070VTN06.4 still in mass production?
A: Yes, AUO A070VTN06.4 is in mass production. We offer a minimum order quantity of 1 piece. If you need to purchase a second or third time, our minimum order quantity is 20 pieces.
